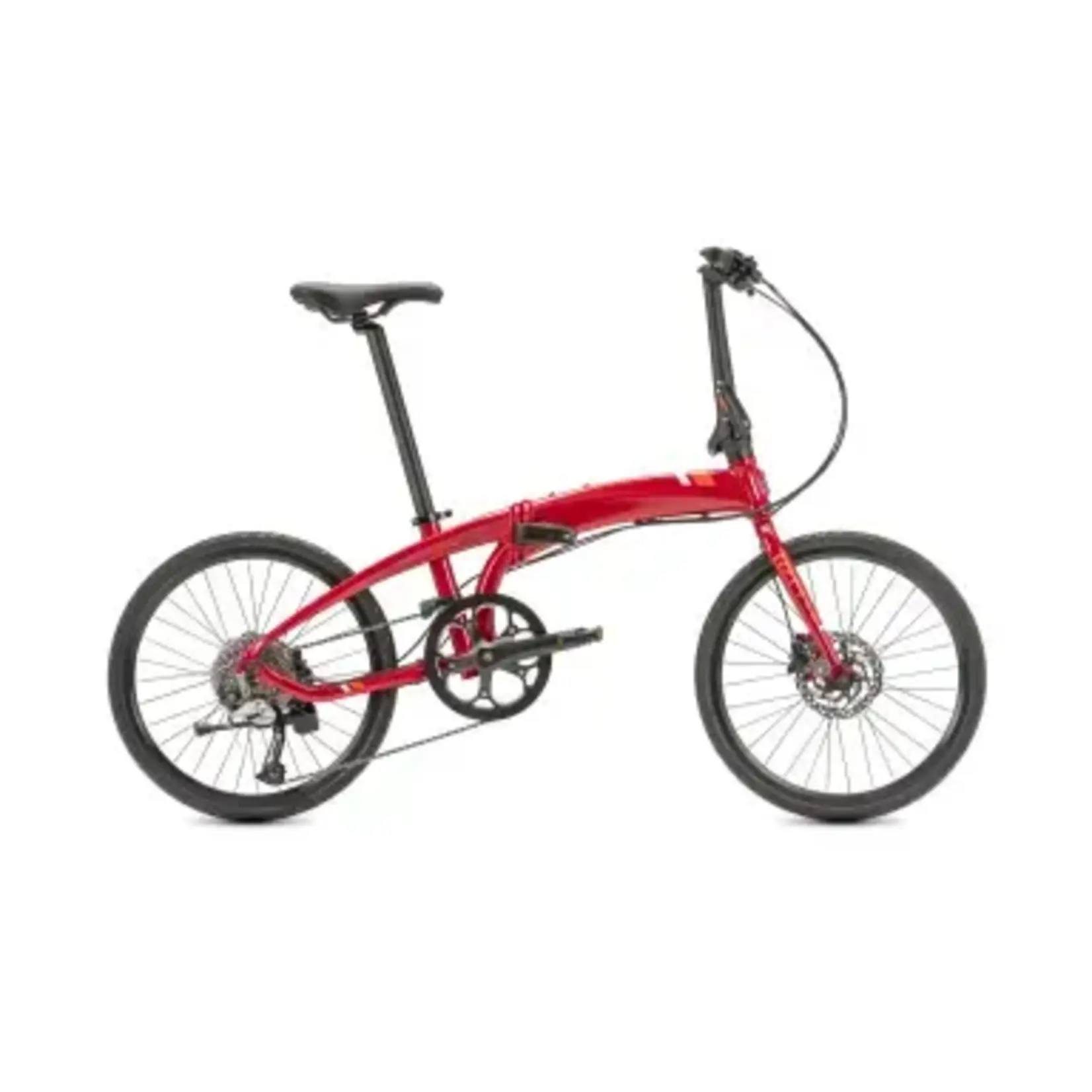

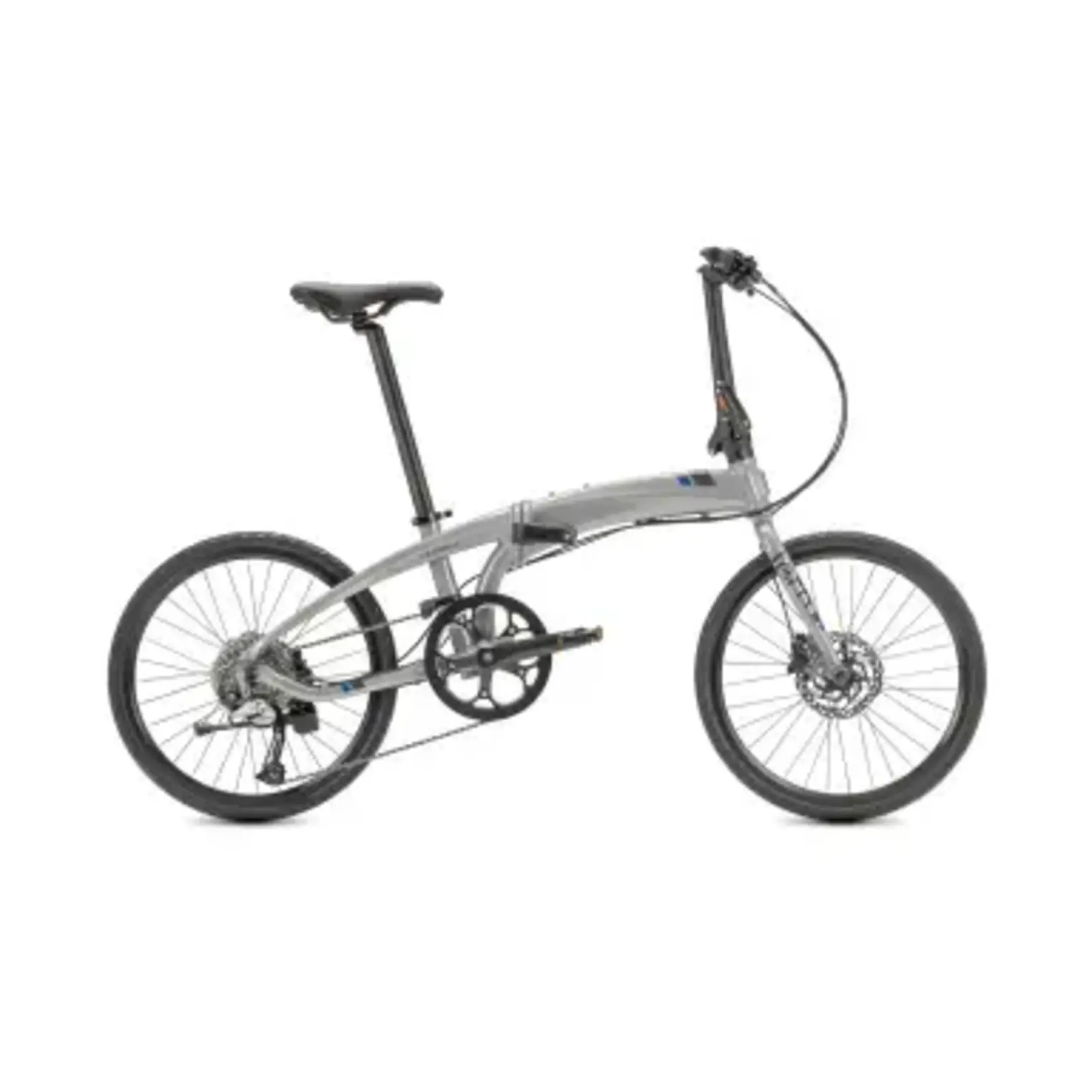

TERN Verge D9

€1.299,95
Incl. tax

The Verge D9 is a trailblazer. Born out of our 451 Verge design philosophy, it has bigger race wheels, T-Tuned™ geometry, and a wide 1x drivetrain. It’s about as much value as we could condense into one bike, and it’s ready for any upgrades you can imagin

The rating of this product is 0 out of 5

(0)
In stock (Delivery timeframe:2 - 4 Working days)
  • New colours and updated styling
  • Verge quality, style, and performance at an entry-level price point
  • Shimano hydraulic disc brakes for all-weather stopping power

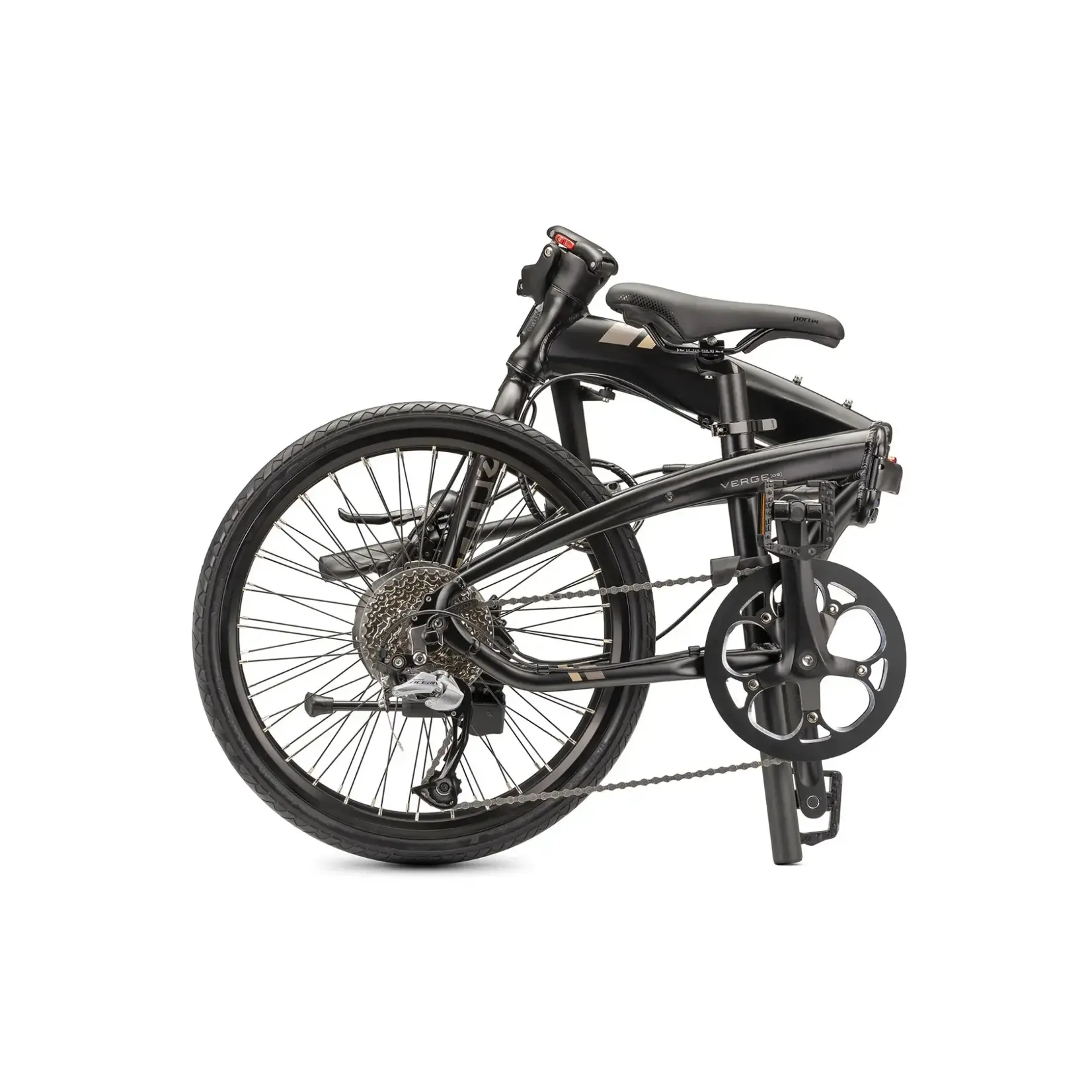

  • Folds in under 10 seconds—fits under a desk
  • Rides with exceptional comfort and stability thanks to our unique technology and T-Tuned geometry
  • 451 wheels deliver a full-sized ride with minuscule impact on the folded size
  • Shimano Sora drivetrain, with 11-34T for all-purpose versatility
  • Tern Porter™ saddle for easy shoulder-mounted bike carrying
  • Optional fenders for rainy days



Technology


Tern OCL Joint - Folding bike frame latch: Robust folding technology


A heavy-duty update to our iconic OCL frame hinge, the OCL+ is built to exceed ISO 4210 and EN 15194 testing requirements. Leveraging the hinge design of the long-tail Tern Cargo Node, the OCL+ features a single-shaft design, advanced welding techniques, and robust gussets, so it stays stiff and strong during even the fastest commutes.

Tern Physis Handlepost - Award-winning folding bike technology: The new benchmark


Five patented technologies and unique manufacturing technology add up to the strongest, stiffest folding handlepost available. The Physis uses a special manufacturing process called 3D forging, which forms the post from a single piece of aluminum, eliminating all welds.

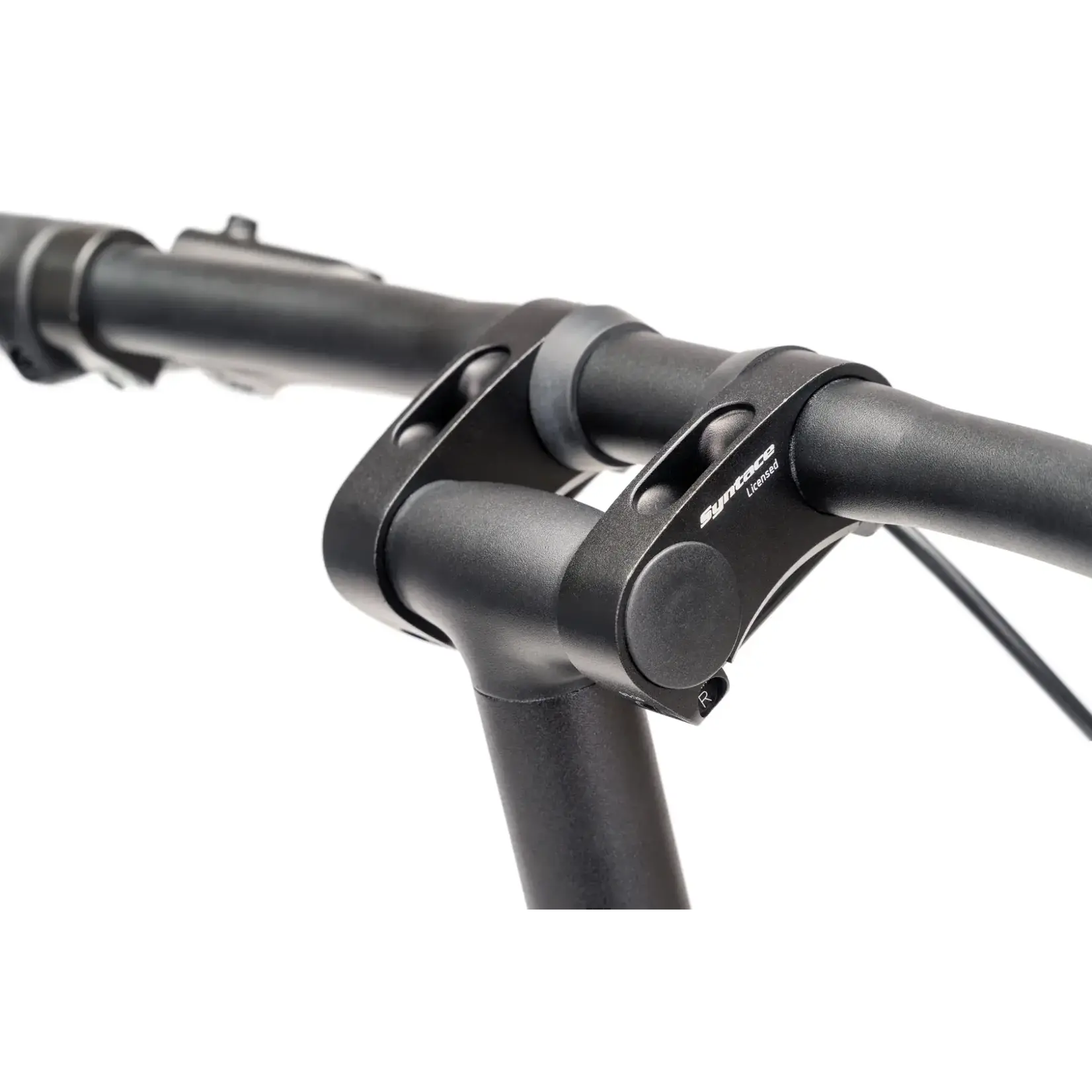

Syntace VRO 47 Adjustable Stem for Tern folding bikes: Find your fit


Your bike should adapt to fit you―not the other way around. This adjustable stem allows you to position your handlebars further, for a more stretched and aggressive riding position, or up higher for increased comfort.

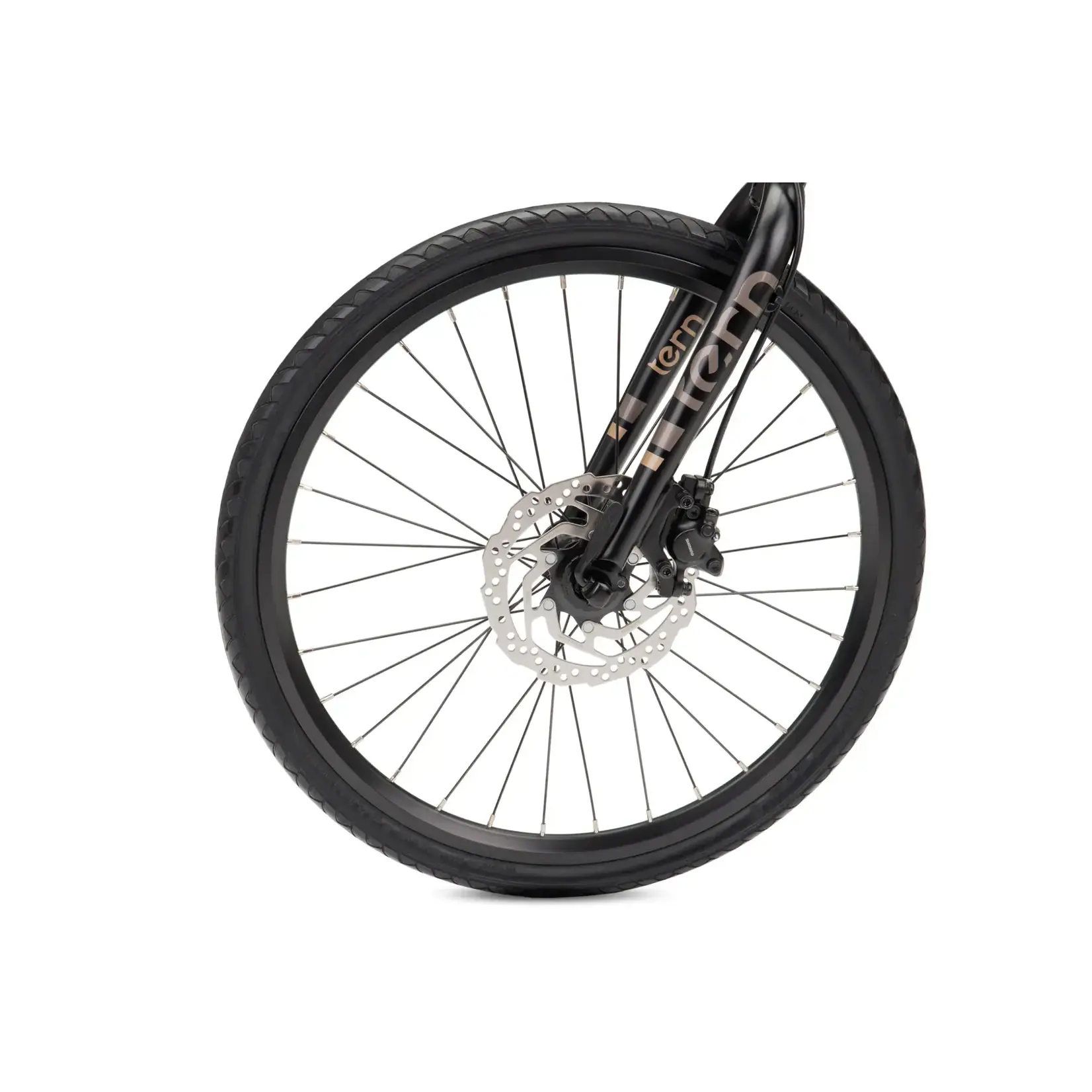

Shimano Hydraulic Disc Brakes: All-weather stopping power

Shimano hydraulic disc brakes deliver powerful stopping power in all weather conditions with the touch of a finger.

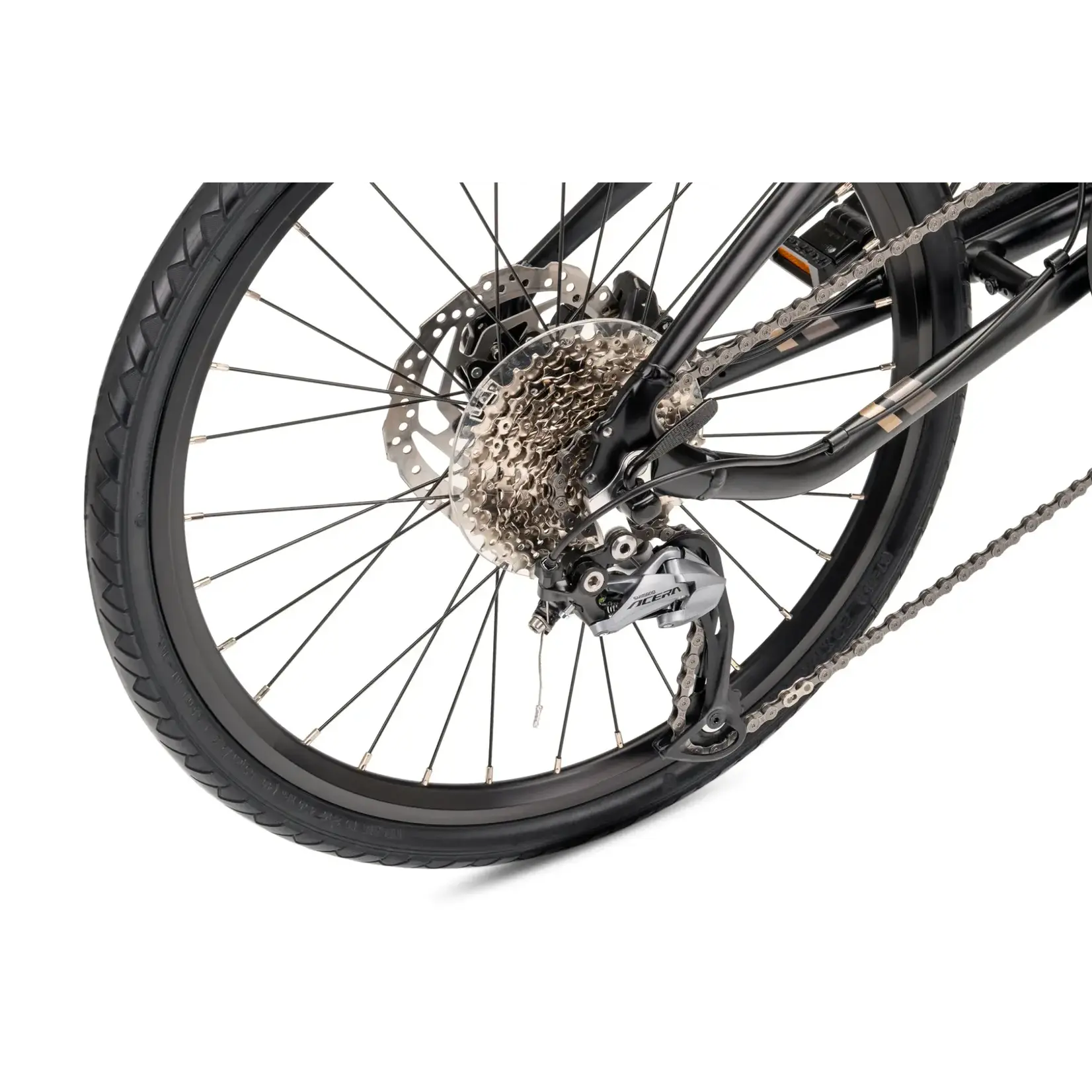

Shimano Shadow Derailleur: STREAMLINED SHIFTING
Originally developed for mountain bikes—for extra durability and to avoid catching on trail debris—the Shadow derailleur is streamlined and incredibly resilient, which comes in handy when you need to transport your folded bike. Whether your bike is bagged on the subway or riding in the trunk of your car, everything is neatly tucked away.



1x Drivetrain for folding bikes: SIMPLIFIED VERSATILITY

There’s a revolution in drivetrains across the industry. Thanks to the recent introduction of hyper-wide cassettes from SRAM and Shimano, it’s possible to achieve massive gear ranges with only one chainring up front. That makes 1x an ideal configuration for folding bikes, because it reduces maintenance, weight, and complexity. Enjoy all the range of a 20-speed drivetrain, with none of the complications.



SPECIFICATIONS

General Info
Generation:
Gen 2
Color(s):



Speeds:
1 x 9
Weight:
12.8 kg (28.2 lb)
Gear Inches:
30" - 97" (2.36 - 7.72 m)
Frame Sizes:
One size
Folding Size:
44 × 80 × 74 cm (17.3 × 31.5 × 29.1 in)
Folding Time:
10 seconds
Distance: Seatpost to Handlebar:
62 - 67 cm (24.4 - 26.4 in)
Distance: Saddle to Pedal:
70 - 96 cm (27.6 - 37.8 in)
Suggested Rider Height:
142 - 190 cm (55.9 - 74.8 in)
Max Gross Vehicle Weight:
120 kg (264.6 lb)
Max Rider Weight:
105 kg (231.5 lb)

Frame
Frame:
Tern Verge, hydroformed aluminum, OCL+ joint, 3 patented technologies
Fork:
Integrated, hi-tensile steel, for disc

Cockpit
Handlepost:
Tern Physis 3D, 3D forged, 5 patented technologies, 12°, 320 mm
Stem:
Syntace VRO, adjustable, Built for Tern
Headset:
Flux, cartridge bearings, Physis integrated
Handlebar:
Flat bar, 6061-AL
Grips/Bar Tape:
Velo ergonomic, lock-on
Saddle:
Tern Porter, patented GripPad design
Seatpost:
SuperOversize, 6061-AL, micro-adjust clamp
Seatpost Clamp:
SuperOversize, 6061-AL

Brakes
Front Brake:
Shimano, hydraulic disc
Rear Brake:
Shimano, hydraulic disc
Brake Levers:
Shimano, hydraulic disc
Brake Cable & Housing:
Shimano, hydraulic

Wheels
Front Hub:
Shimano disc
Rear Hub:
Shimano disc
Spokes & Nipples:
Stainless steel
Rims:
Doublewall aluminum
Tires:
CST, 37-451, light skinwall, 60 tpi

Transmission
Shifter:
Shimano, trigger, 1 x 9 spd
Rear Derailleur:
Shimano Sora
Crankset:
Forged 6061-AL, 53T
Cassette/Freewheel:
11-34T, 9 spd
Bottom Bracket:
Cartridge, sealed bearings
Chain:
KMC 9 spd
Pedals:
Folding, alloy body
Shifter Cable & Housing:
SP

Bells & Whistles
Bell:
Aluminum
Kickstand:
Deluxe rear mount
Clip System:
Magnetix 2.0
Luggage Socket:
Yes
Fenders:
Opt: RP Chromeplastic, stainless hardware
