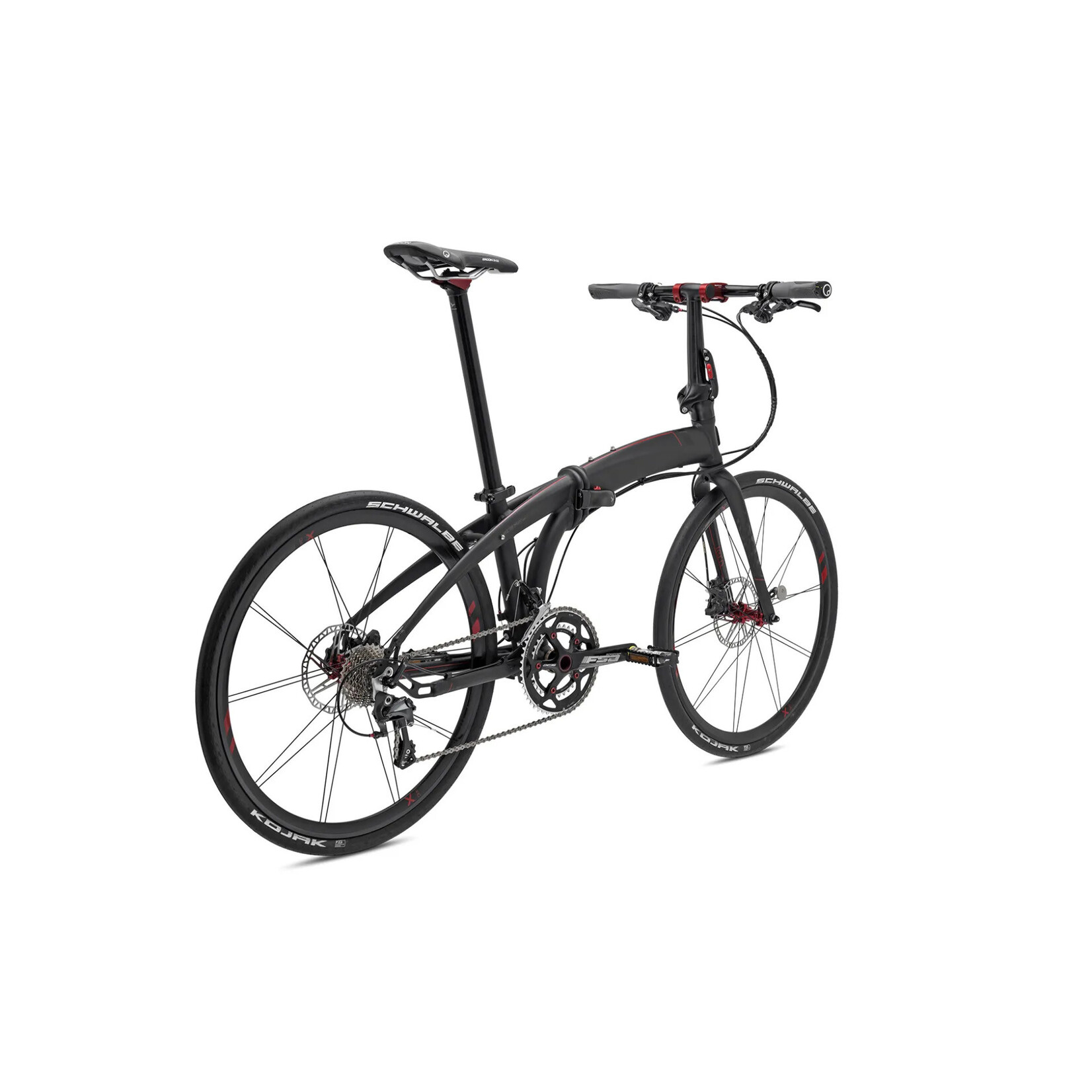

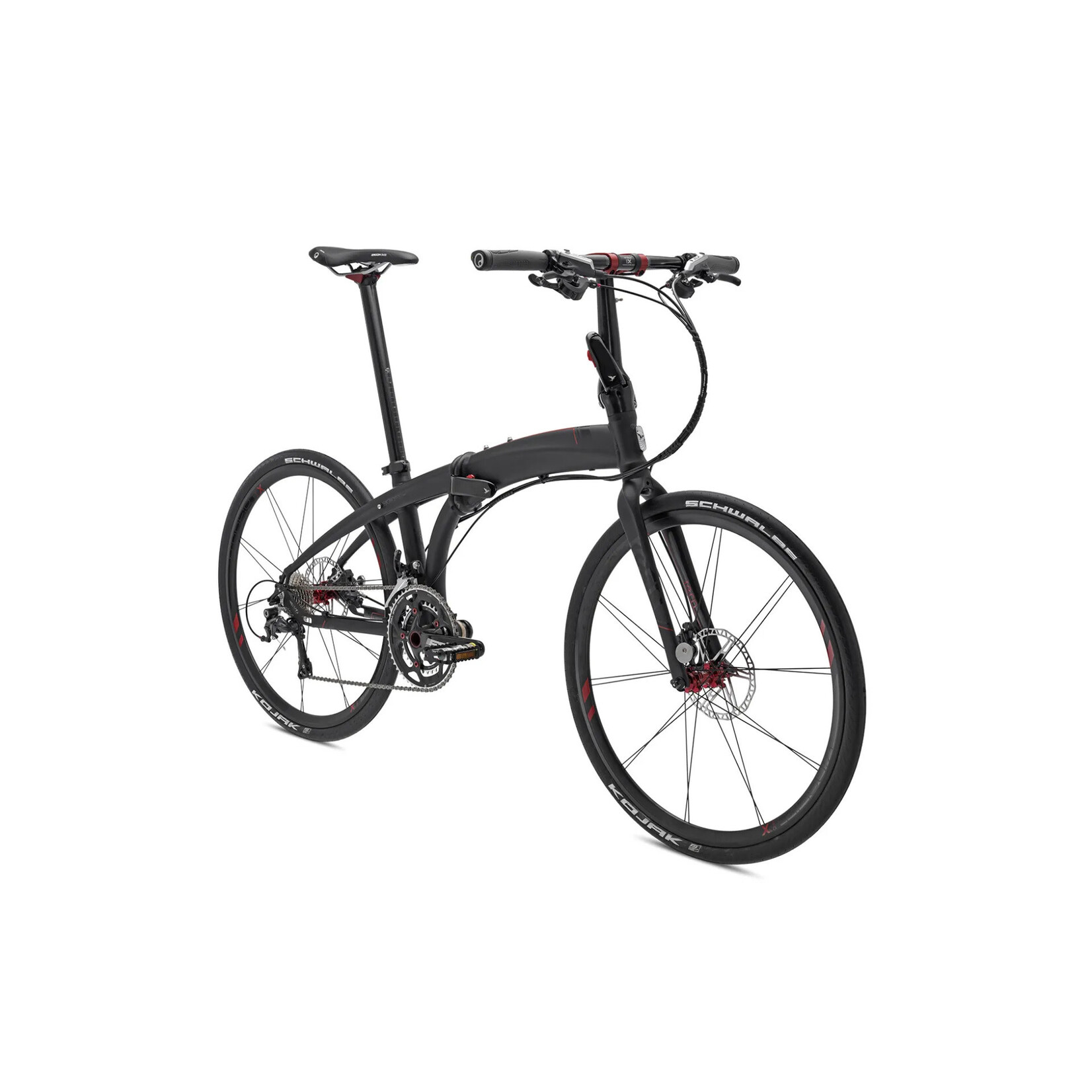

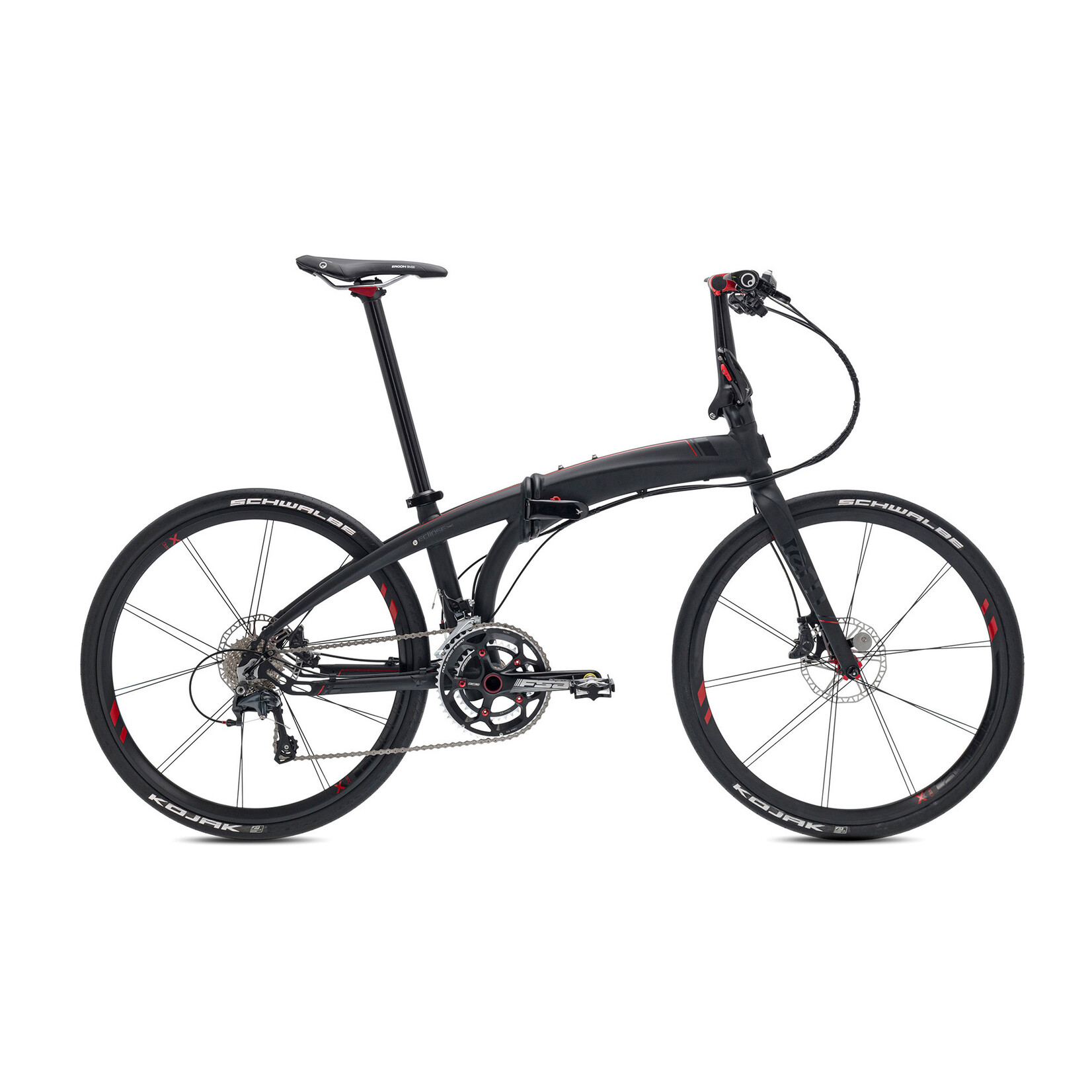

Eclipse X22 The Blackbird

TERN Eclipse X22 The Blackbird

€3.116,00

Incl. tax

Full-size wheels and performance-tuned frame geometry make it easy to build up and maintain speed as you tackle the roads. Plenty of gears allow you to dial in your most efficient cadence and sprint up hills.

SPECIFICATIONS

General Info

Speeds - 2 x 11

Weight - 11.3 kg (24.9 lb)

Gear Inches - 30" - 112" (2.38 - 8.92 m)

Frame Sizes - One size

Folding Size - 42 × 89 × 81 cm (16.5 × 35 × 31.9 in)

Folding Time -10 sec

Distance: Seatpost to Handlebar:

60 - 64 cm (23.6 - 25.2 in)

Distance: Saddle to Pedal

77 - 104 cm (30.3 - 40.9 in)

Suggested Rider Height - 148 - 195 cm (58.3 - 76.8 in)

Max Gross Vehicle Weight - 120 kg (264.6 lb)

Max Rider Weight - 105 kg (231.5 lb)

Frame

Frame:Tern Eclipse, hydroformed aluminum w/ smooth TIG welding, OCL+ joint, 3 patented technologies

Fork:Tarsus, 6061-AL, hydroformed

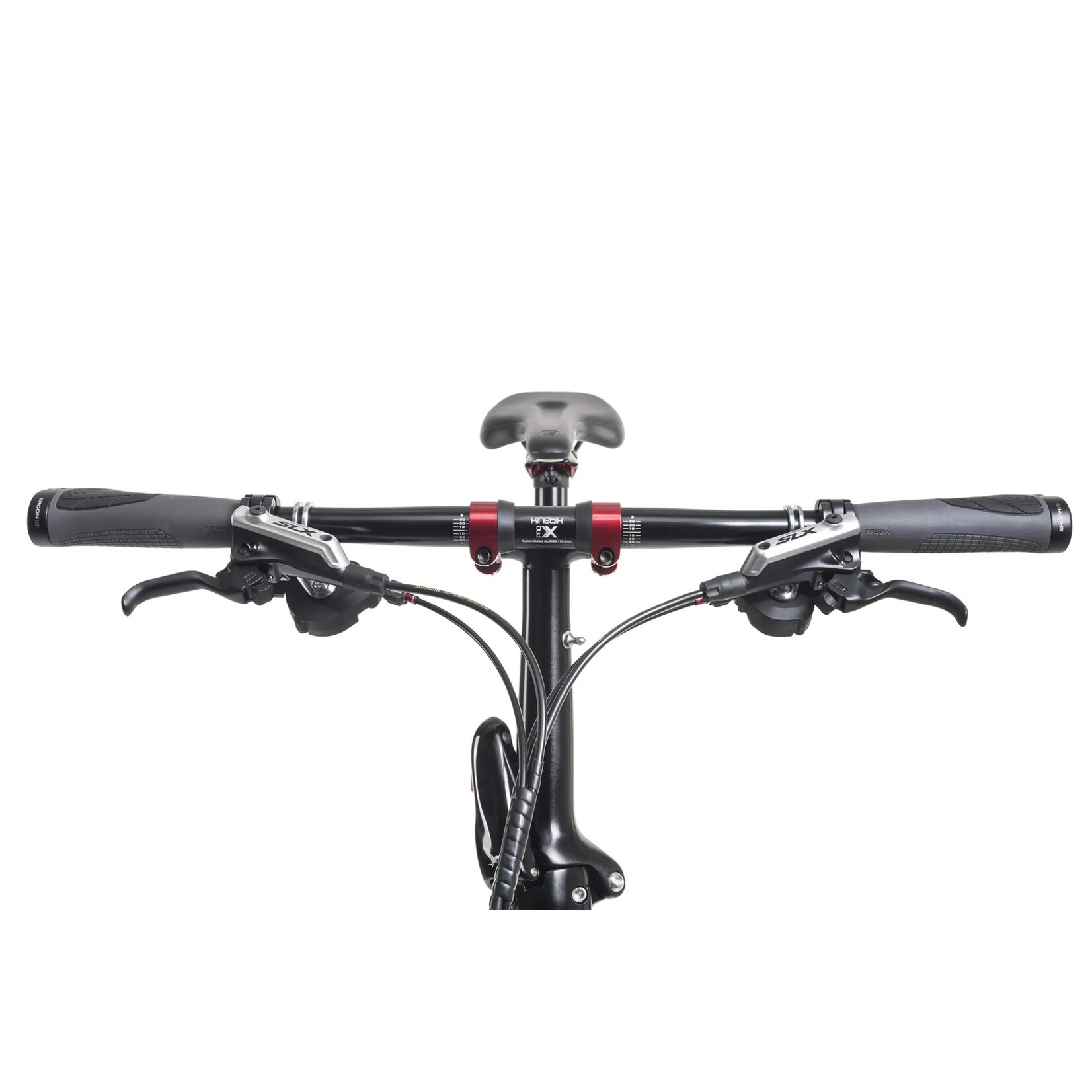

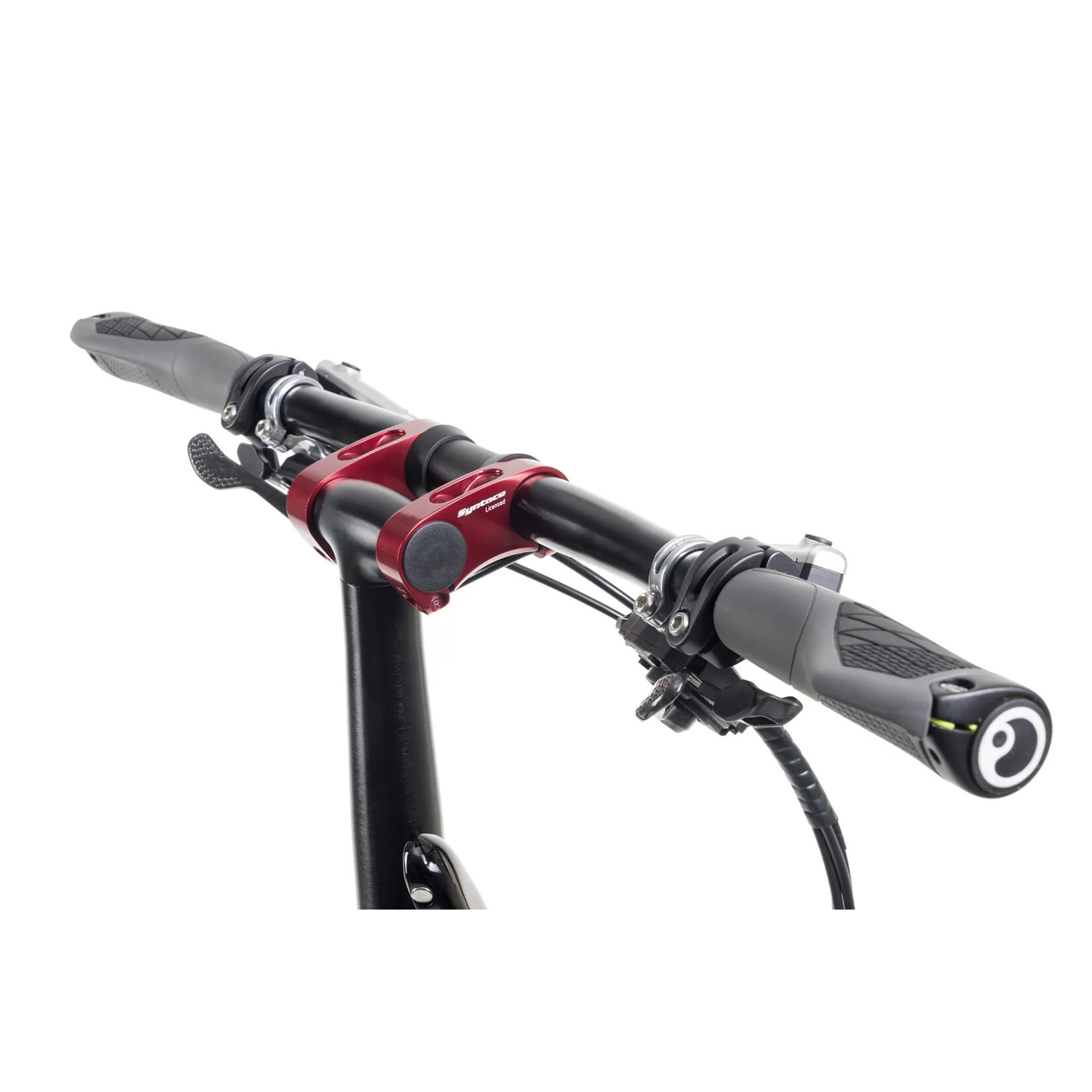

Cockpit

Handlepost - Tern Physis 3D (G2), 3D forged, 5 patented technologies, 12°, 250 mm

Stem - Syntace VRO, adjustable

Headset - Flux Pro, angular contact bearings, Physis integrated

Handlebar - Kinetix Pro X, 7050-Al, multi-stage butted

Grips/Bar Tape - Ergon GP10 L

Saddle - Ergon SMC10 Sport Gel

Seatpost - Stasis by Syntace, 7050-AL, hard-anodized

Seatpost Clamp - Syntace OverLock

Brakes

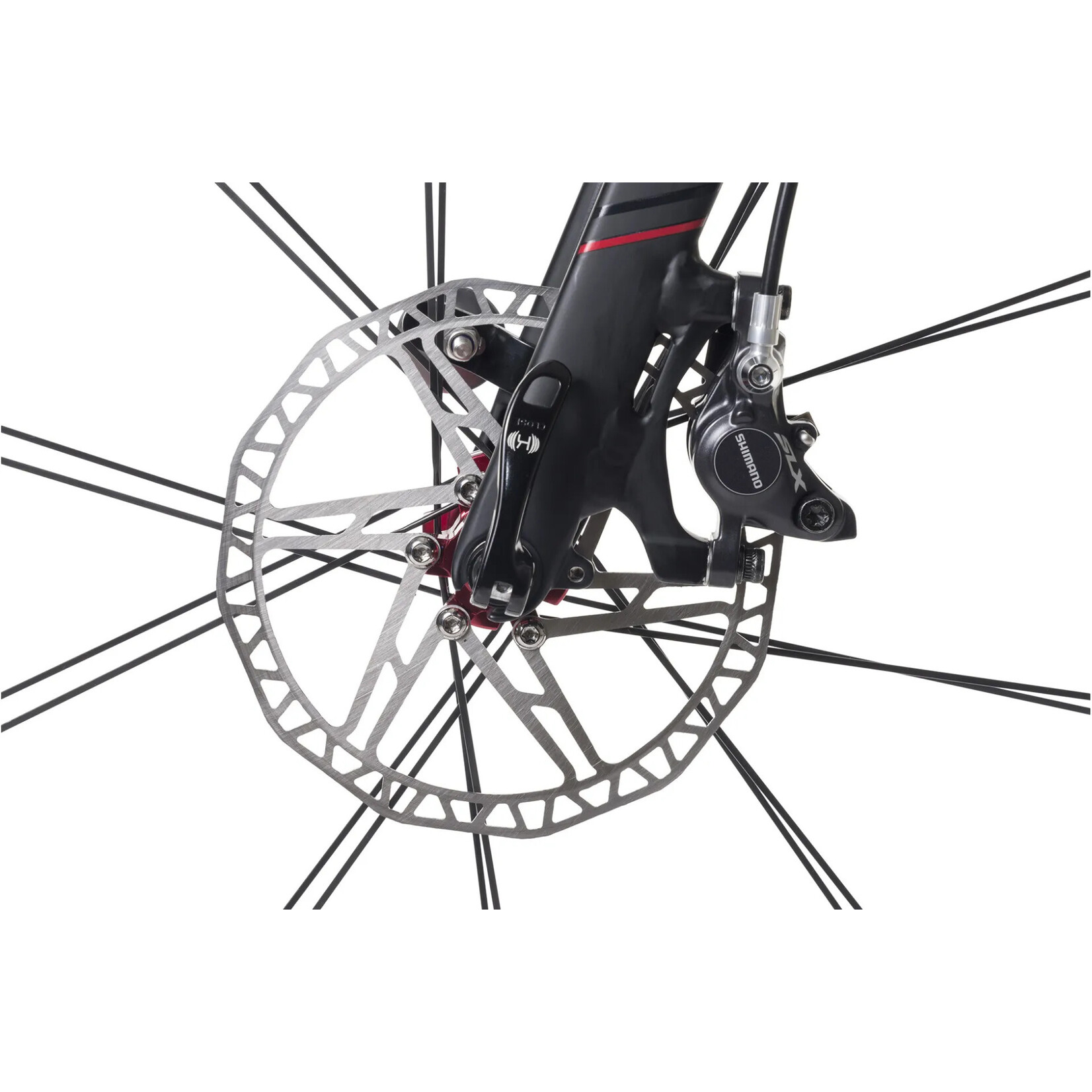

Front Brake - Shimano Deore, hydraulic disc

Rear Brake - Shimano Deore, hydraulic disc

Brake Levers - Shimano Deore, hydraulic disc

Brake Cable & Housing - Shimano, hydraulic

Wheels

Front Wheel - Kinetix Pro X Disc, Paired Spoke technology, straight-pull design, 20H, asymmetric flange, 700 g

Rear Wheel - Kinetix Pro X Disc, Paired Spoke technology, straight-pull design, 20H, asymmetric flange, 820 g

Spokes & Nipples - Sapim CX-Sprint, internal Polyax nipples

Tires - Schwalbe Kojak, 35-559, foldable, puncture protection, 95 psi

Transmission

Shifter(s) - Shimano 105 trigger, 2x11 spd

Front Derailleur - Shimano 105

Rear Derailleur - Shimano 105

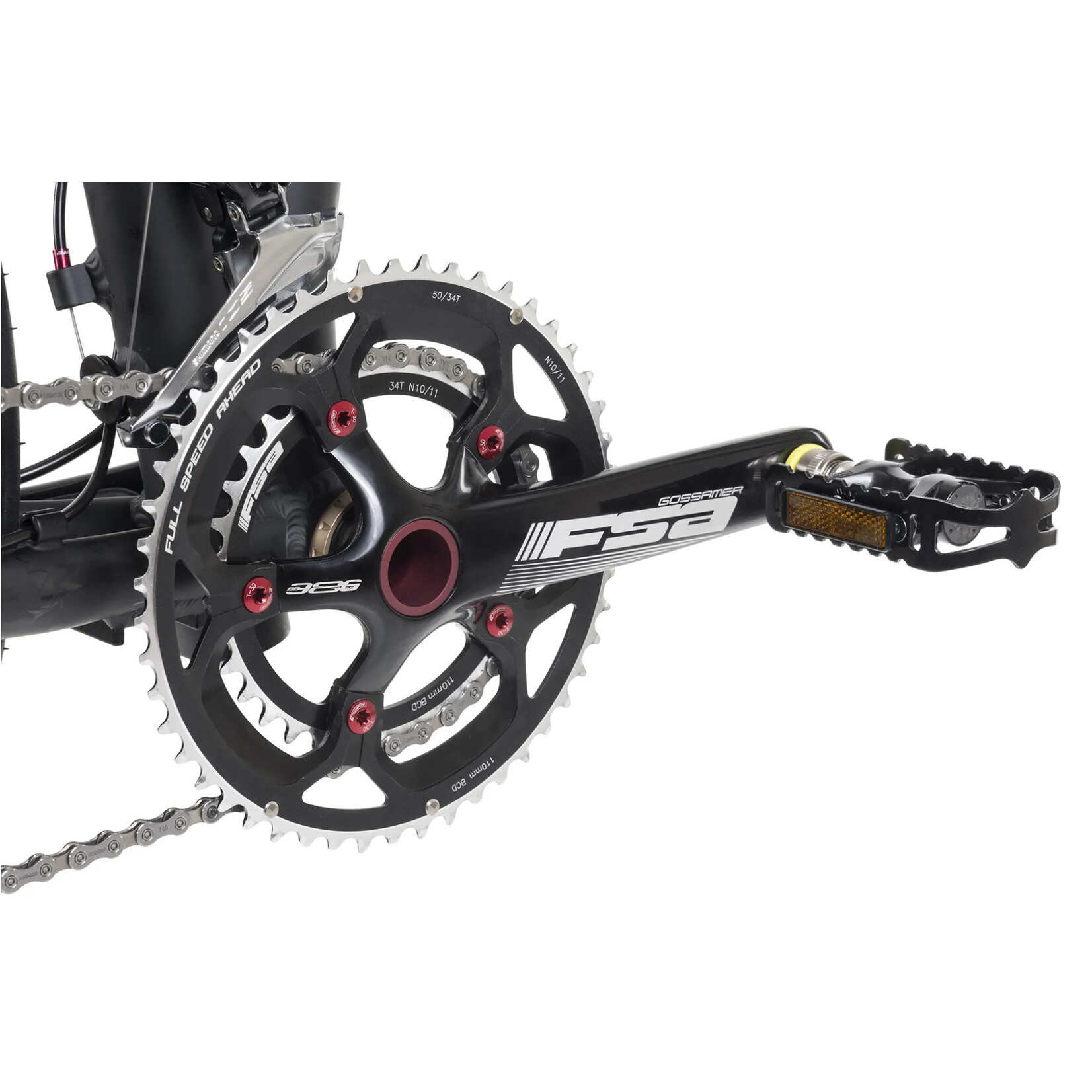

Crankset - FSA Gossamer Pro, 50/34T, BB386 oversized aluminum spindle

Cassette/Freewheel - Shimano 105, 11-28T, 11 spd

Bottom Bracket - FSA MegaEVO, BB386

Chain - Shimano 105, 11 spd

Pedals - MKS UB-LITE EZY, QR

Shifter Cable & Housing - Jagwire LEX-SD, ultra-slick polymer coating, alloy ferrules

Bells & Whistles

Bell-Pitch, Brass

Clip System-Magnetix 2.0

Luggage Socket-Yes
