KEY PERFORMANCE FACTORS

Proven alloy performance

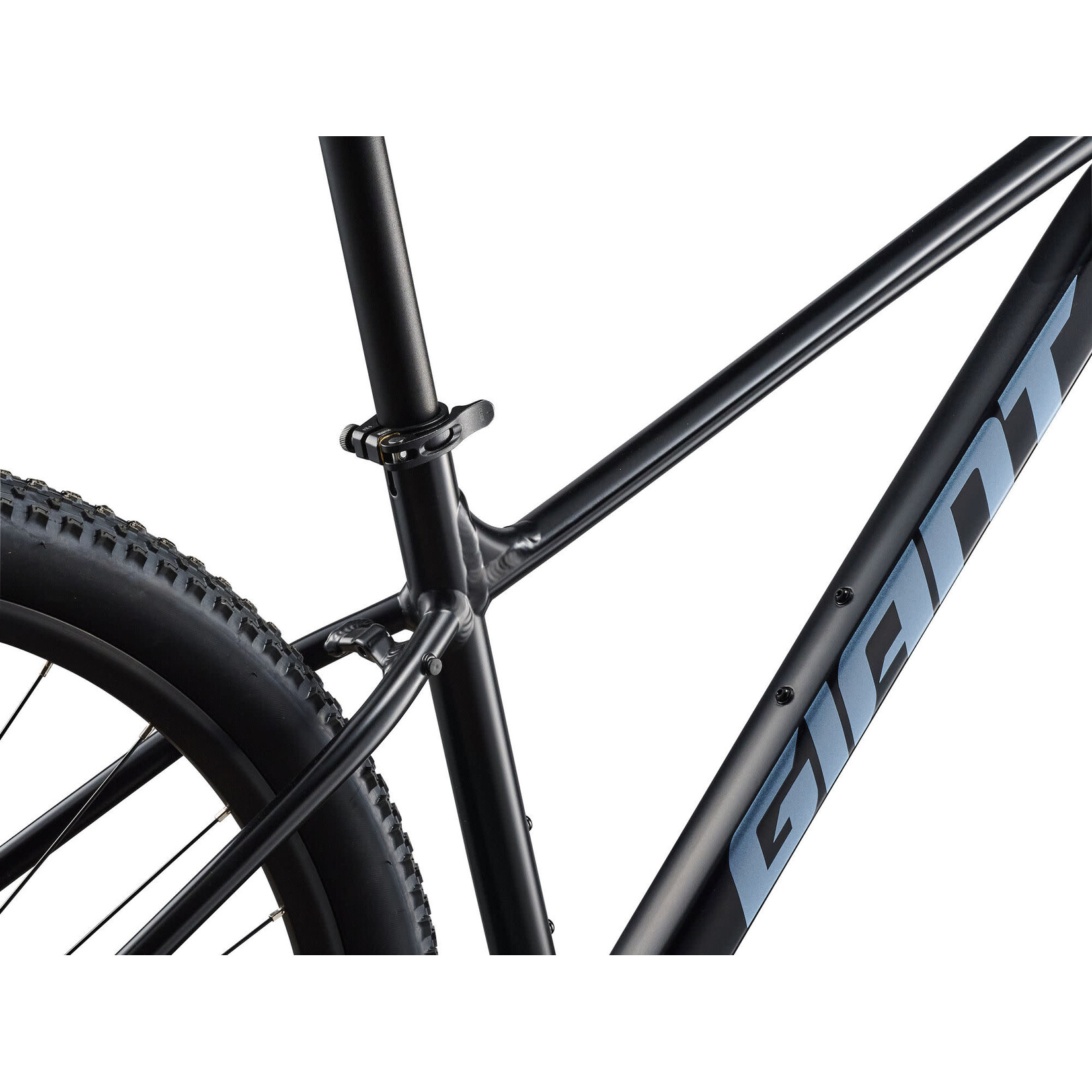

ALUXX aluminum frameset is hand-built in-house by the world leader in aluminum engineering.

Balance and stability

Frame geometry is designed to optimize the balance and roll-over capabilities of 29-inch wheels or the liveliness of 27.5-inch wheels (depending on frame size).

XC control

Suspension fork offers either 80mm or 100mm of smooth travel for added control on XC terrain.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size. Available sizes may vary from country to country.

XS (27.5") 155 cm to 166 cm
S (27.5") 163 cm to 172 cm
M (27.5") 169 cm to 179 cm
L (27.5") 176 cm to 286 cm
XL (29") 183 cm to 193 cm
XXL (29") 190 cm to 200 cm

Colours - GlossBlack/Sandshell

Frame - ALUXX-grade aluminium, disc

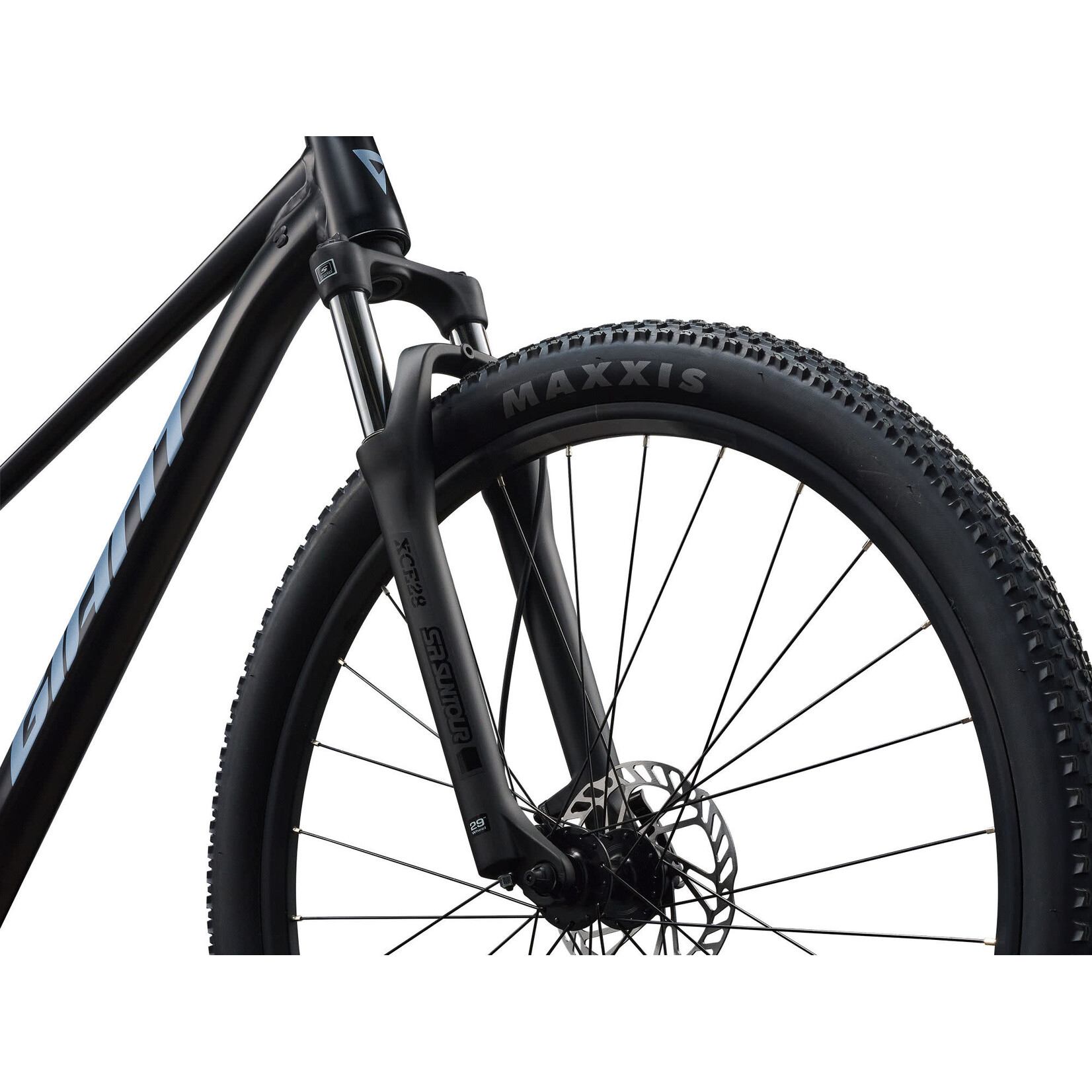

Fork - SR Suntour XCE, steel steerer XS & S 27.5 80mm travel All other sizes 100mm travel

Shock - N/A

Handlebar - Giant Connect Trail, 31.8mm XS 27.5 730mm All other sizes 780mm

Grips - Giant Sole-O

Stem - Giant Sport, 7-degree

Seatpost - Giant Sport, 30.9mm XS 27.5 300mm All other sizes 375mm

Saddle - Giant custom

Pedals - MTB caged

Shifters - Shimano SL-M315, 2x7

Front Derailleur - Shimano FD-M315

Rear Derailleur - Shimano Tourney

Brakes - TKB-172, mechanical [F]160mm, [R]160mm rotors

Brake Levers - RS360A, mechanical

Cassette - Shimano HG200, 12x32

Chain - KMC Z7

Crankset - ProWheel Forged, 22/36

Bottom Bracket - cartridge

Rims - Giant GX03V 29 or 27.5, alloy, double wall, 21mm inner width

Hubs - alloy, sealed bearing

Spokes - Stainless steel, 14g

Tyres - Kenda Booster 27.5 or 29x2.2", wire bead

Extras - 2.4" max tyre size
