All-new ALUXX aluminum frame features updated shaping and a lighter overall weight for improved performance on off-road terrain.
Specifications
Frame - ALUXX-grade aluminum, disc

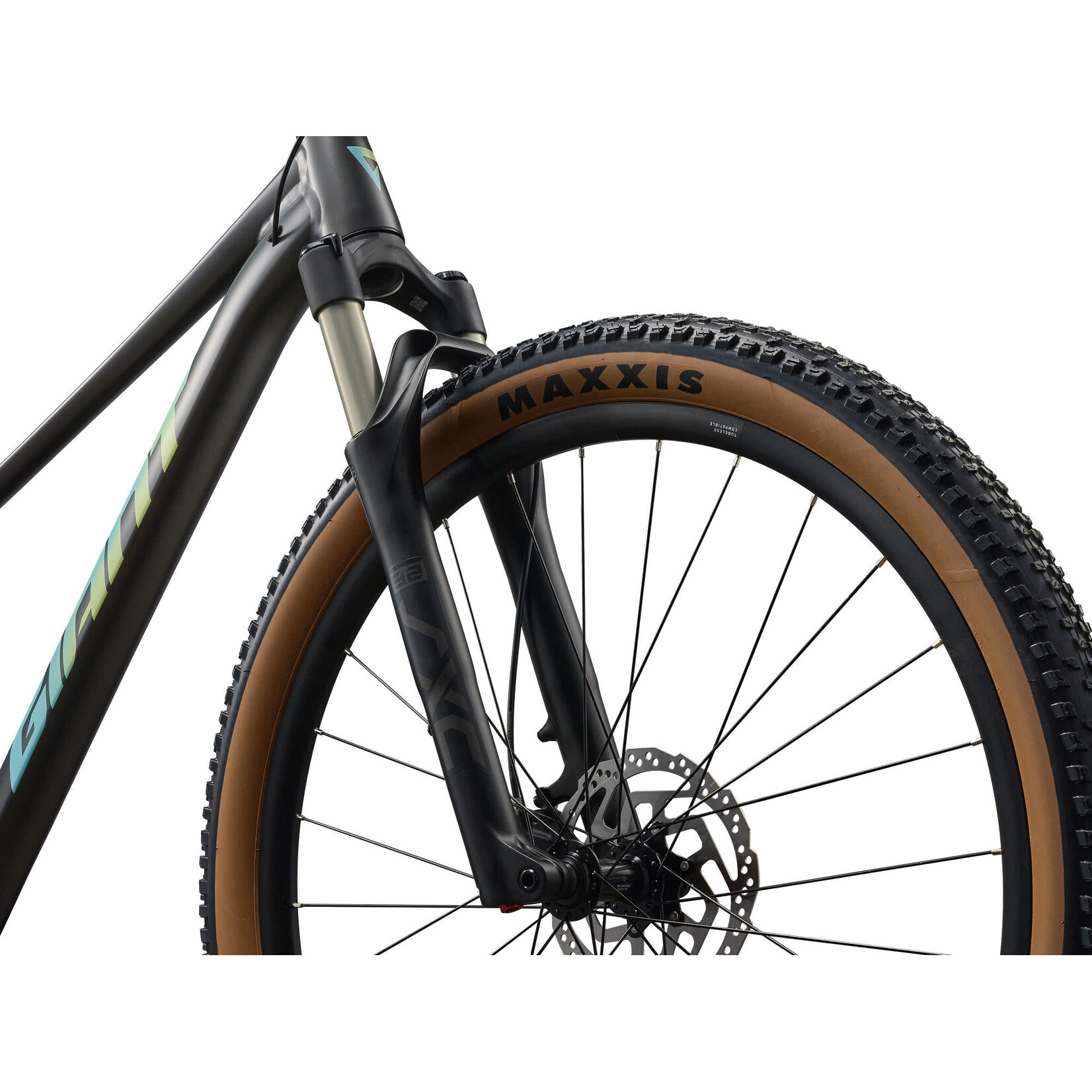

Fork - SXC32-2 RCL, air spring, thru axle, steel steerer, 15x110 XS: 80mm travel (27.5) S: 80mm travel (27.5) / 100mm travel (29) M:100mm travel (29) L: 100mm travel (29) XL: 100mm travel (29) XXL: 100mm travel (29)
Handlebar - Giant Connect Trail, 31.8mm XS: 690mm (27.5) S: 690mm (27.5) / 750mm (29) M: 780mm (29) L: 780mm (29) XL: 780mm (29) XXL: 780mm (29)
Stem - Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29) XXL: 90mm (29)
Seatpost - Contact Switch AT Core, 30.9, dropper, remote under bar, 110-140mm travel XS: 395mm (27.5) S: 395mm (27.5/29) M: 395mm (29) L: 395mm (29) XL: 395mm (29) XXL: 395mm (29)
Saddle - Giant ErgoContact Trail
Pedals - MTB caged
Shifters - Shimano Deore M6200, 1x12

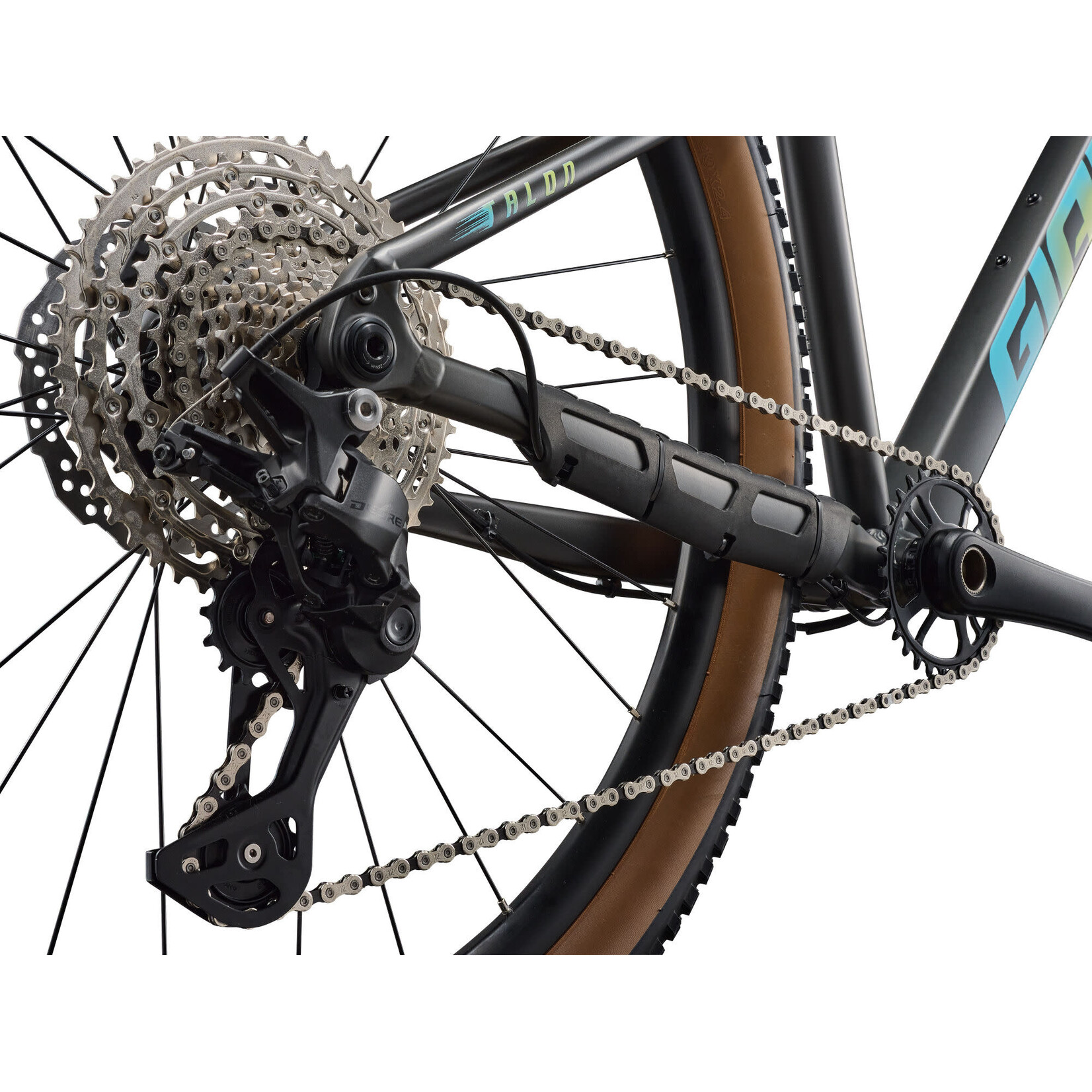

Rear Derailleur - Shimano Deore M7200, Shadow ES

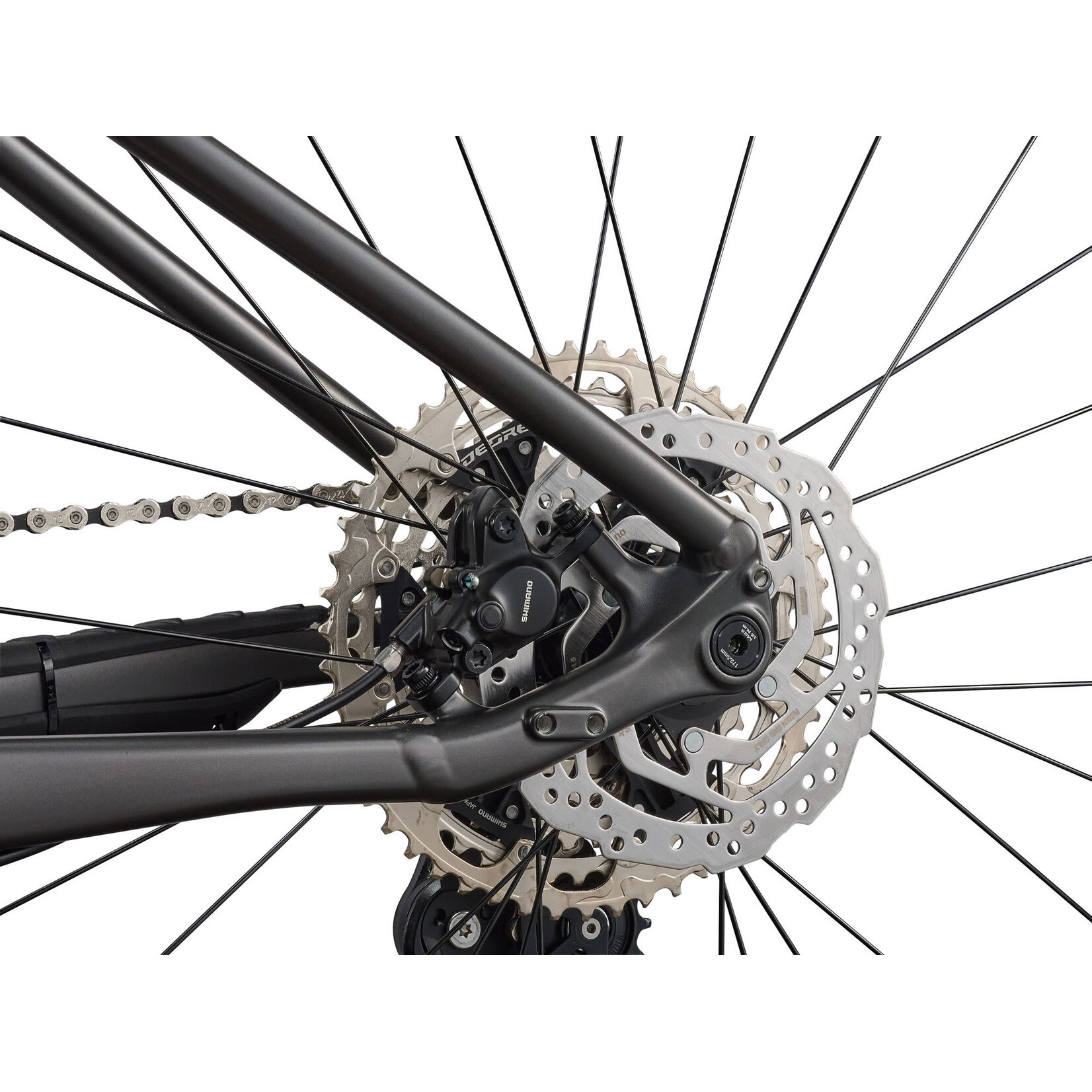

Brakes - Shimano BR-MT200, hydraulic, Shimano RT-10 rotors [F]180mm, [R]160mm
Brake Levers - Shimano BL-MT201
Cassette - Shimano Deore M6200, 10x51
Chain - KMC X-12
Crankset - ProWheel MPX, 32t (27.5) or 30t (29) XS: 165mm (27.5) S: 165mm (27.5) / 170mm (29) M: 170mm (29) L: 170mm (29) XL: 175mm (29) XXL: 175mm (29)
Bottom Bracket - Cartridge
Rims - Giant tubeless compatible 29 or 27.5, alloy, double wall, 21mm inner width
Hubs - [F] Shimano, sealed bearing, 15x110 thru axle, [R] 12x142 thru-axle
Spokes - stainless, 14g
Tyres - Maxxis Rekon 27.5x2.4" or Maxxis Rekon Race 29x2.4", wire bead
Max Tire Clearance - 2.4"
Max Chainring Size - 32T
