  • GIANT Revolt 1

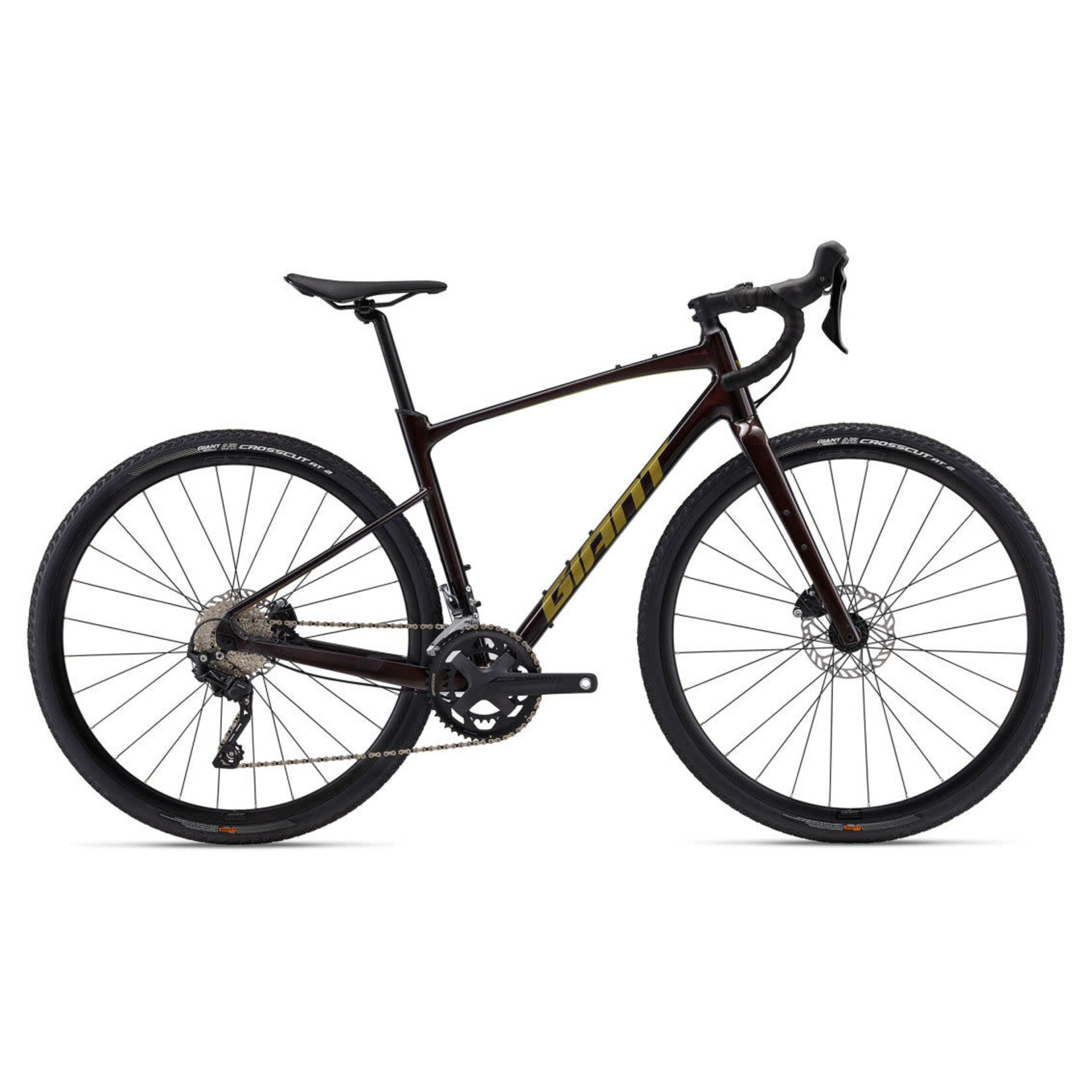

GIANT Revolt 1

Incl. tax

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance

The rating of this product is 0 out of 5

Out of stock (Delivery timeframe:1 - 4 Weeks)
Add to wish list Add to wish list


Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned comspliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.


  • Sizes - S, M, M/L, L, XL
  • Colours - Gloss Cordovan/Dried Herb
  • Frame - ALUXX-grade aluminium, 12x142mm thru-axle, disc, flip chip dropout
  • Fork - Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Shock - N/A
  • Handlebar - Giant Contact XR D-Fuse, 31.8mm
  • Grips - cork tape with gel
  • Stem - Giant Contact, 8-degree
  • Seatpost - Giant D-Fuse, alloy, 14mm offset
  • Saddle - Giant Approach
  • Shifters - Shimano GRX RX-400, 2x10
  • Front - DerailleurShimano Tiagra
  • Rear - DerailleurShimano GRX RX-400
  • Brakes - Shimano GRX RX-400 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
  • Brake - LeversShimano GRX RX-400 hydraulic
  • Cassette - Shimano HG500, 11x34
  • Chain - KMC X10 with Missing Link
  • Crankset - FSA Omega Adventure, 32/48
  • Bottom - BracketFSA Mega EXO
  • Rims - Giant S-X2 Disc wheelset, alloy, 25mm inner rim width
  • Hubs - Giant alloy, 12mm thru-axle
  • Spokes - Stainless steel
  • Tyres - Giant CrossCut AT 2, 700x38c, tubeless
  • Extras - Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Max Chainring Size - SRAM Wide 2x 43-30, 1x 46T. SRAM Road 2x 52-39, 1x 52T. Shimano Road 2x 52-36. GRX 2x 48-31, 1x 42T
