  • GIANT Revolt 1
  • GIANT Revolt 1

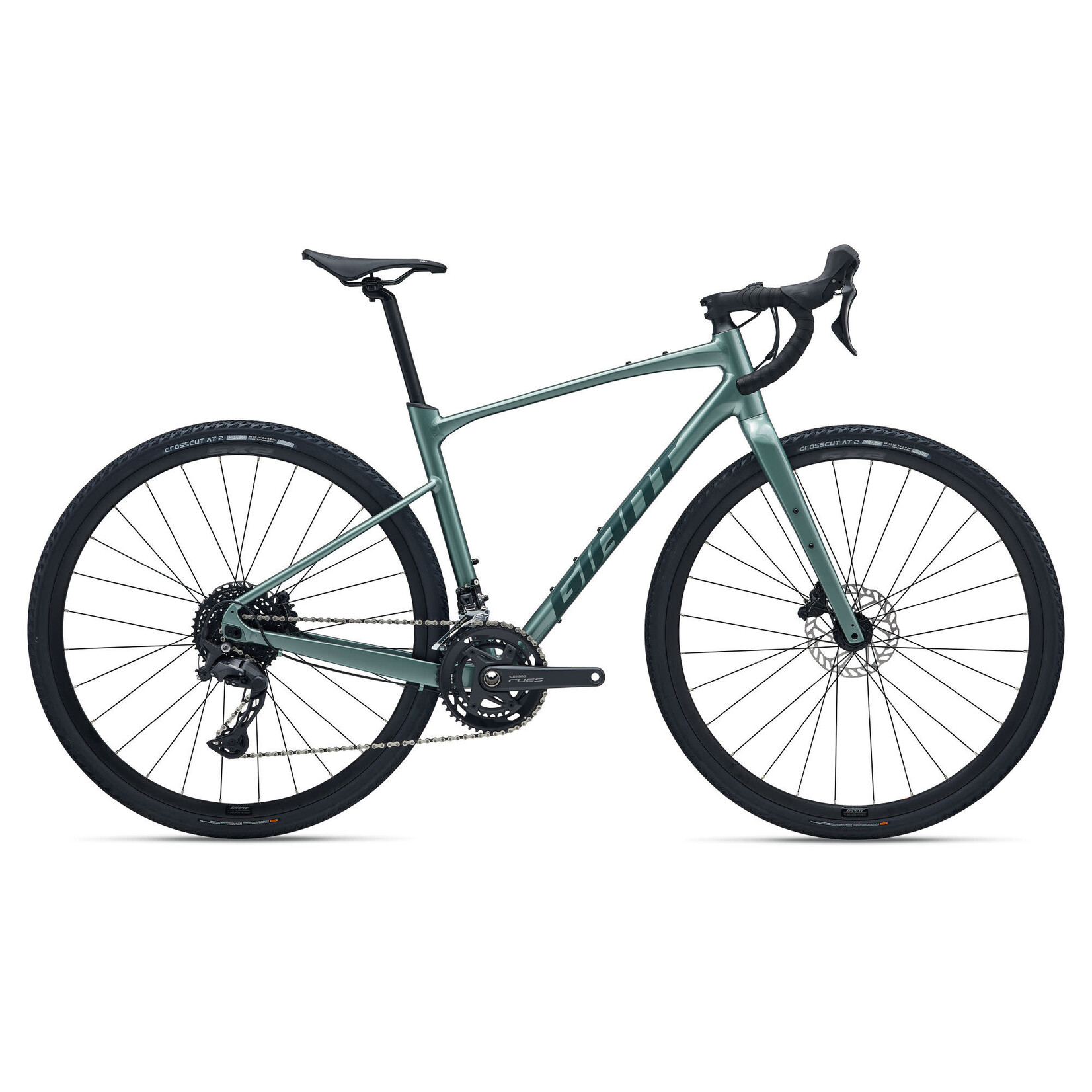

GIANT Revolt 1

€1.699,00
Incl. tax

Ride roads, gravel or dirt with this versatile aluminum all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tire clearance.

The rating of this product is 0 out of 5

(0)
Out of stock (Delivery timeframe:1 - 4 Weeks)
Add to wish list Add to wish list

Key Performance Factors

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tires up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

Specifications

Sizes - XS, S, M, M/L, L, XL
Colours - Alpine Green
Frame - ALUXX-grade aluminum, 12x142mm thru-axle, disc, flip chip dropout
Fork - Advanced-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
Handlebar - Giant Contact XR D-Fuse, 31.8mm XS:42cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
Stem - Giant Contact, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
Seatpost - Giant D-Fuse, alloy, 14mm offset
Saddle - Giant Grit
Shifters - Shimano CUES U6030, 2x10
Front Derailleur - Shimano CUES U6030
Rear Derailleur - Shimano CUES U6020
Brakes - Shimano CUES U6030 hydraulic, Giant MPH rotors [F]160mm, [R]160mm
Brake Levers - Shimano CUES U6030 hydraulic
Cassette - Shimano CS-LG300, 11x39
Chain - KMC X11
Crankset - Shimano FC-U6030-2, 32/46 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
Bottom Bracket - Shimano, threaded
Rims - Giant S-X2, alloy
Hubs - Giant alloy, 12mm thru-axle
Spokes - stainless
Tyres - Giant CrossCut AT 2, 700x38c, tubeless
Extras - tubeless prepared
Max Tire Clearance - 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position with 1x drivetrains. Max tyre size with a 2x drivetrain is 45mm in the long position.


Sizing Guide

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS -   155 cm166 cm

S -   159 cm171 cm

M -   169 cm181 cm

ML -   174 cm186 cm

L -   179 cm191 cm

XL -   189 cm200 cm
