Key Performance Factors

Smart support

The new SyncDrive Core 50Nm motor has Smart Assist mode, which uses sensors to constantly determine and deliver the optimal level of support by automatically adjusting power output.

Comfort and control

A step-thru frame design with a 63mm suspension fork, suspension seatpost, powerful disc brakes and extra-wide 55mm tires combine for smooth confidence and control on a variety of road surfaces and conditions.

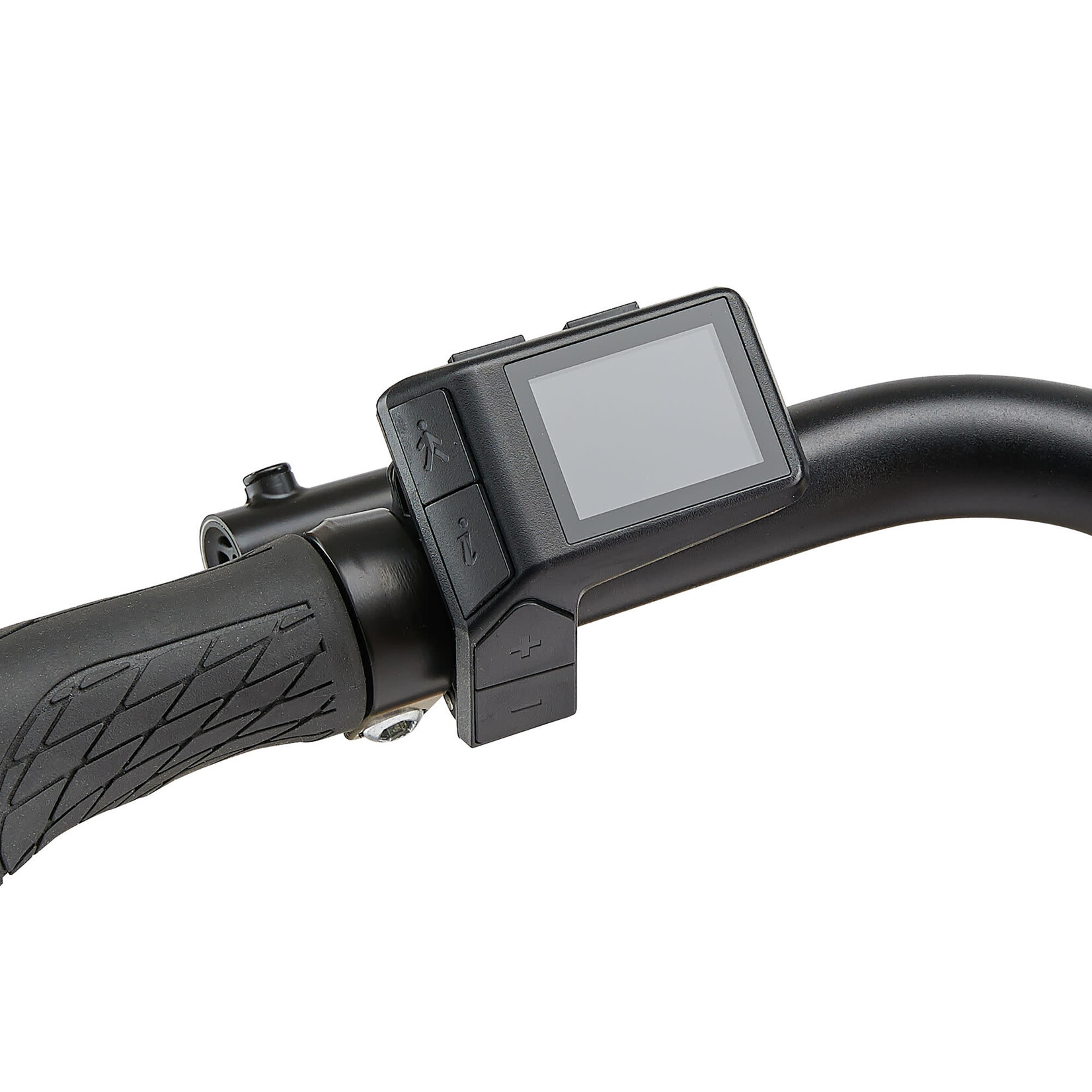

Full-Color Display

RideDash Evo (on select models) on the handlebar/stem area makes it easy to view ride data including speed, distance, battery level and navigation.

ActieRadius

How far can I expect to ride on a single battery charge?

The range for a single battery charge can vary greatly depending on conditions such as the combined weight of the rider and cargo; wind resistance; tyre pressure and tread profile; terrain and elevation changes; road or trail surface; outdoor temperature; maintenance of the E-Bike; and the condition of the battery.

Conditions are categorized as extreme, good and ideal. Extreme conditions typically occur when riding with a heavy load, strong headwinds or excessive climbs.

Energypak 500 / SyncDrive Core

ActieRadius - Extreme: 55 KM/ Good: 100 KM Ideal: 170 KM

Specifications

Motor - Giant SyncDrive Core, 50Nm, Powered by Yamaha, PedalPlus 6-sensor technology

Battery - Giant EnergyPak 500Wh CO2 Neutral production

Charger - Giant EnergyPak 4A smart charger

Controller - Giant RideControl Dash, Smart Assist automatic mode, 5 manual support levels, USB-C (10W)

Display - Giant RideControl Dash, high-angle visibility, full color LCD display

SizesS, M, L

Colours - Gloss Black Currant & Matte Early Espresso

Frame - ALUXX aluminium, monotube, Battery Semi Integrated, low step through design

Fork - SR Suntour Mobie A32 DS Coil, 63mm travel 100x15mm axle

Handlebar - Aluminium, 30° back sweep, 31.8x660mm

Stem - Aluminium angle adjustable stem

Seatpost - Aluminium

Saddle - Selle Royal Essenza Plus

Pedals - Wellgo C097, PP/ Kraton body, Anti-slip

Shifters - Shimano Altus 1x9

Rear Derailleur - Shimano Alivio

Brakes - Tektro HD-M275, hydraulic disc, 180mm [F], 160mm [R]

Brake -  LeversTektro HD-M275

Cassette - Shimano CS-HG200, 11-36T, 9-speed

ChainKMC E9 Sport NP/BK, e-bike optimised

Crankset - Aluminium 38T

Rims - Giant Double Wall Aluminum 622x21

Hubs - Shimano HB-TC500-15 100x15 [F], Shimano FH-QC300-HM [R]

Spokes - Stainless 14G(2.0mm) [F]Stainless 13-14G(2.3-2.0mm) butted [R]

Tyres - Schwalbe Big Ben 55-622 Wire Bead w/ reflective stripe

Extras - KSA18 direct mount kickstand
