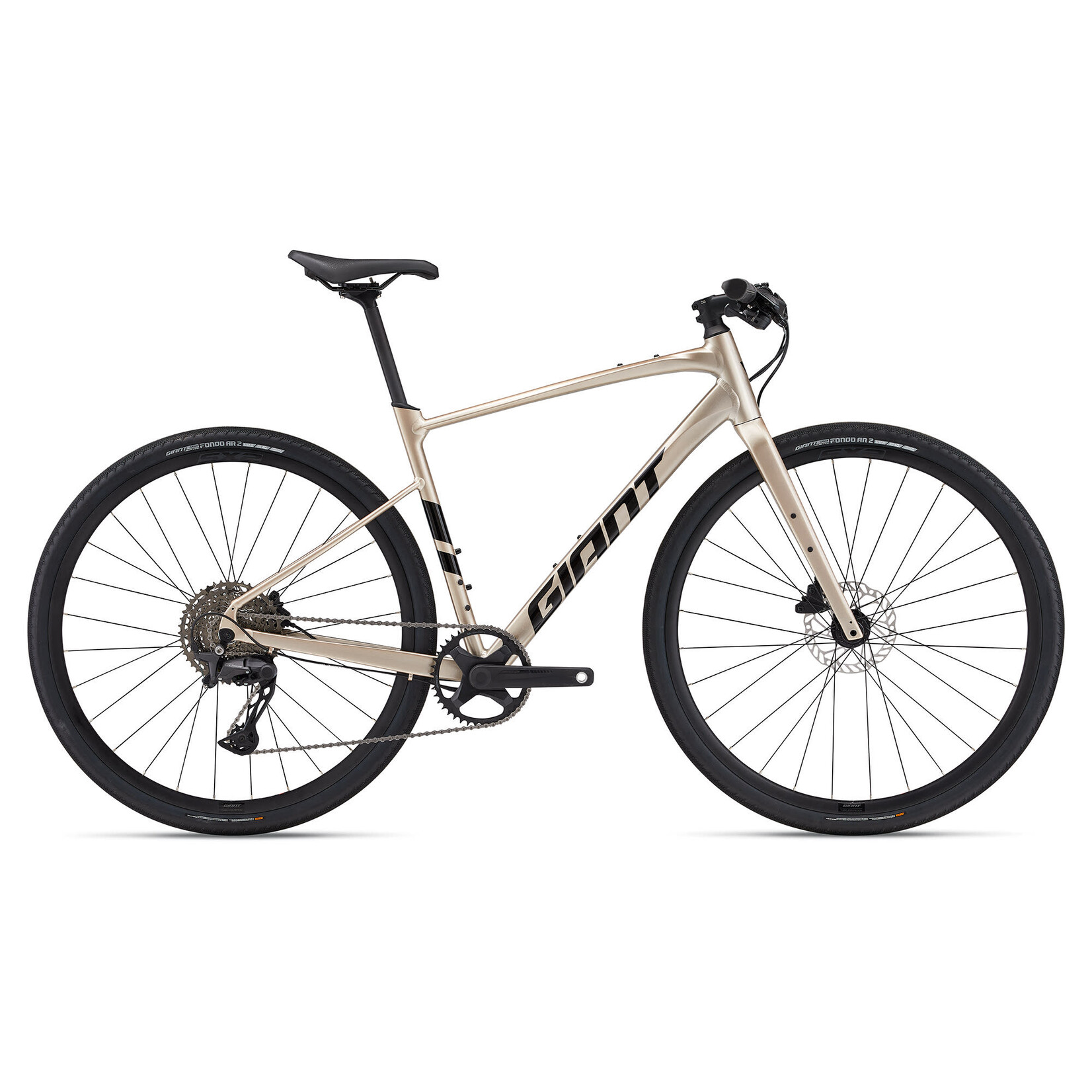

High-quality ALUXX aluminum frame and composite fork deliver efficient pedaling power for a smooth, fast ride on variable roads and paths.

Flat handlebar frame geometry creates a more upright riding position for confident handling. Powerful disc brakes offer added control in all conditions. And the combination of a D-Fuse composite seatpost and ErgoContact saddle helps smooth out rough roads.

High-volume 40mm tubeless tires offer the freedom and versatility to ride smooth roads, bumpy bike paths or gravel. Single or double chainring setups are available on different models to suit individual riding style and terrain.



Specifications

• Sizes - S, M, M/L, L, XL
• Colours - Sandshell
• Frame - ALUXX-grade aluminum

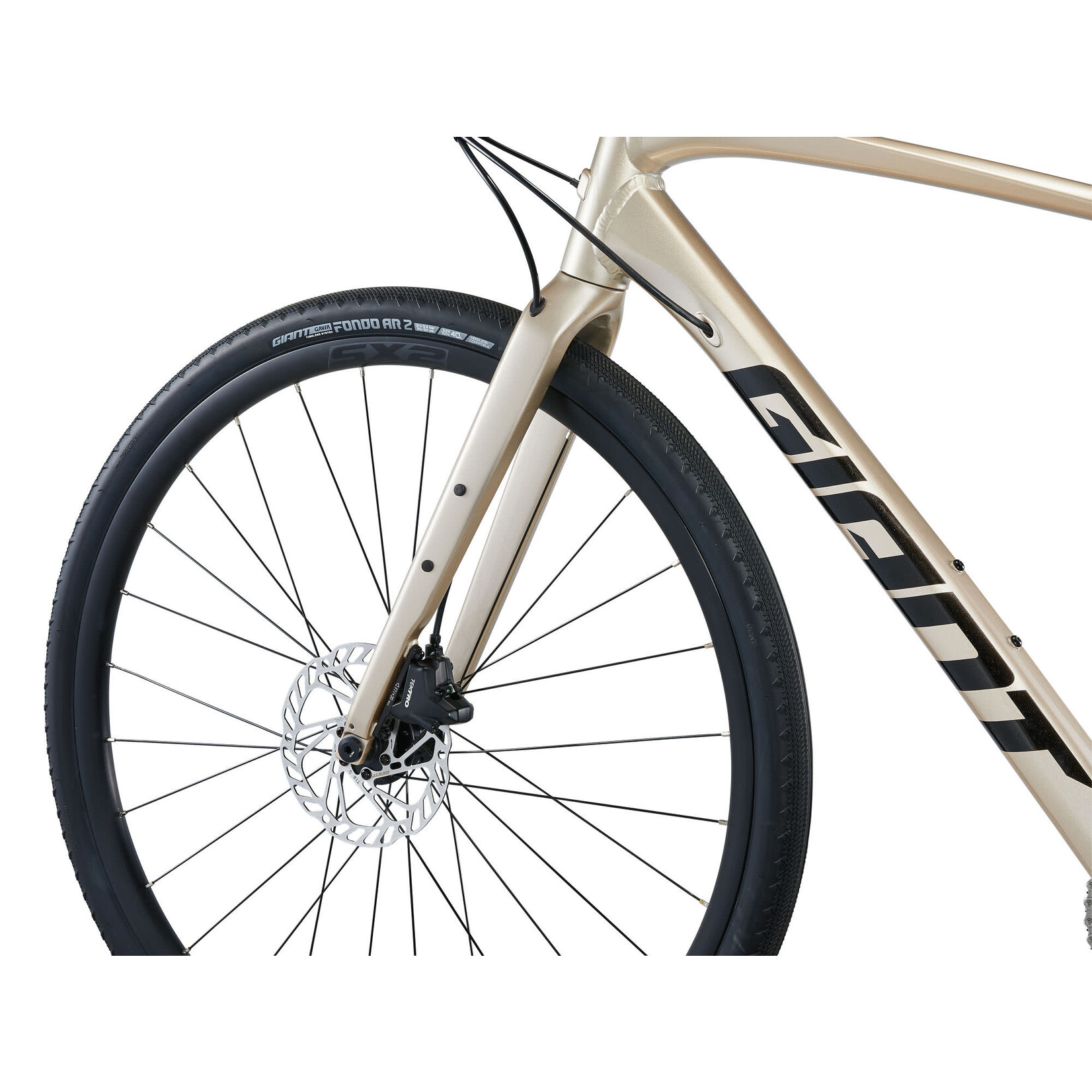

• Fork - Advanced-grade composite, composite OverDrive steerer
• Shock - N/A

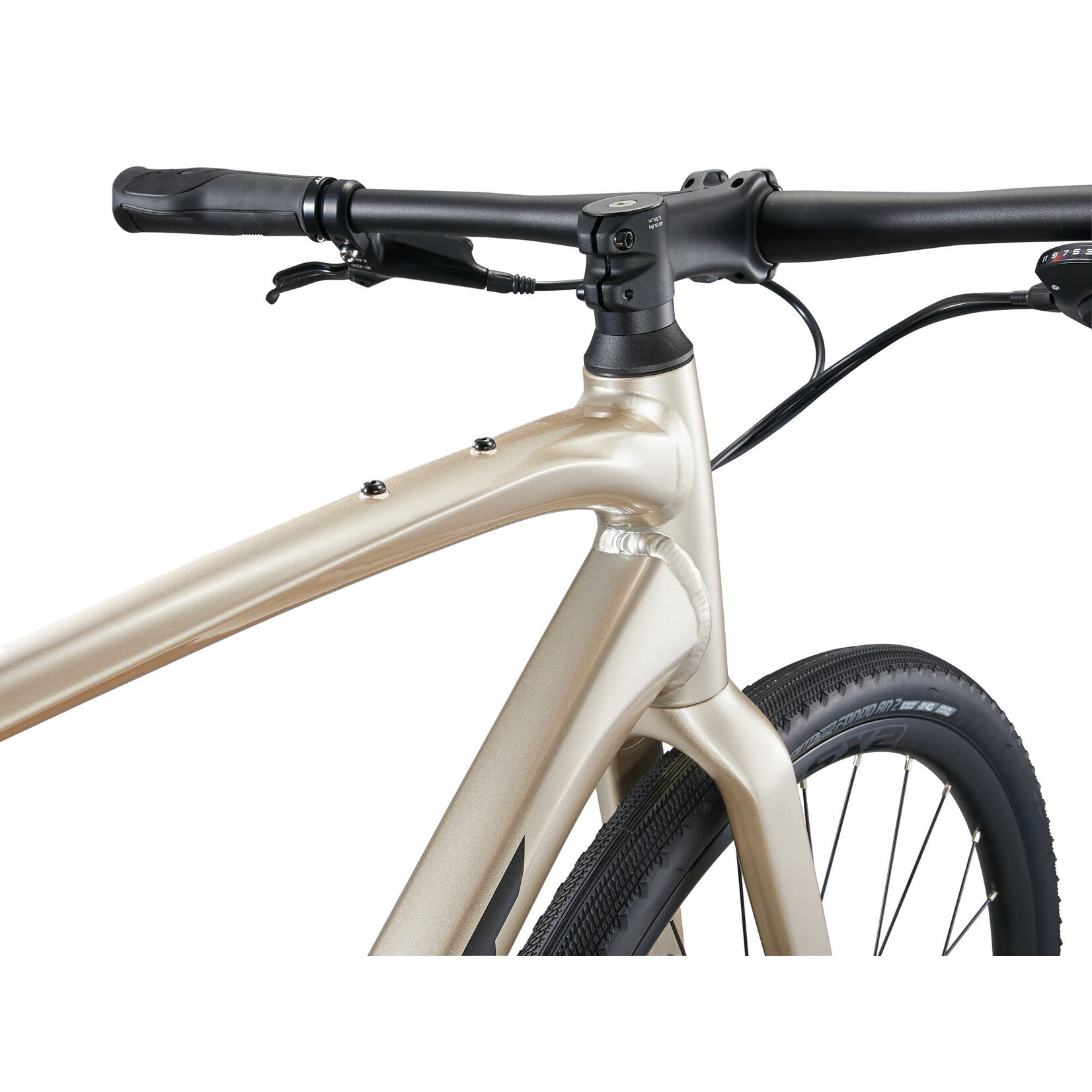

• Handlebar - Giant Sport, mini-rise, 31.8 XS:64cm, S:64cm, M:68cm, M/, L:68cm, XL:68cm
• Stem - Giant Contact, 8-degree XS:70mm, S:80mm, M:90mm, M/, L:100mm, XL:110mm

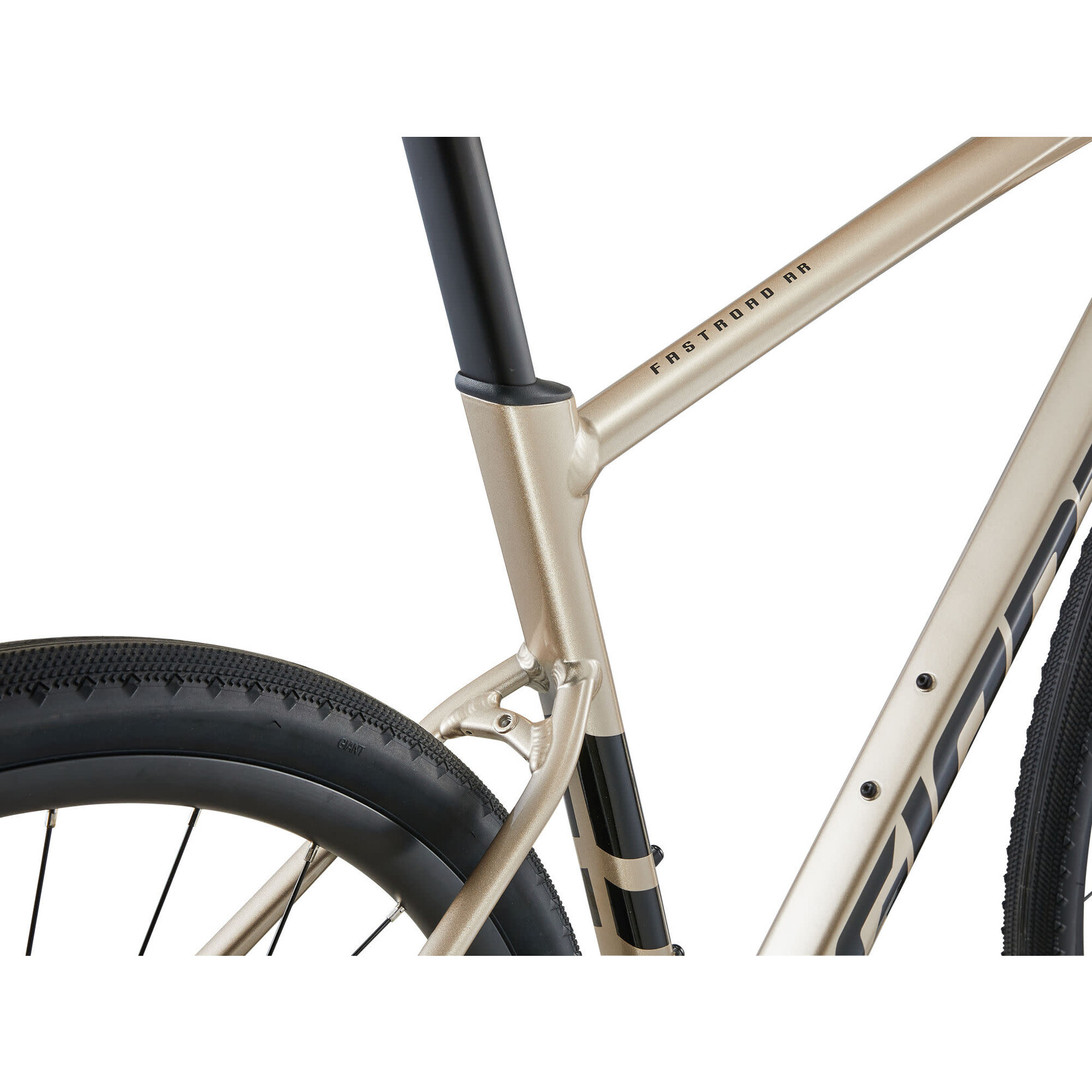

• Seatpost - Giant D-Fuse, composite, 350mm
• Saddle - Giant ErgoContact
• Pedals - platform pedal
• Shifters - Shimano Cues U6000 11 speed - SLU60011R
• Front Derailleur - N/A

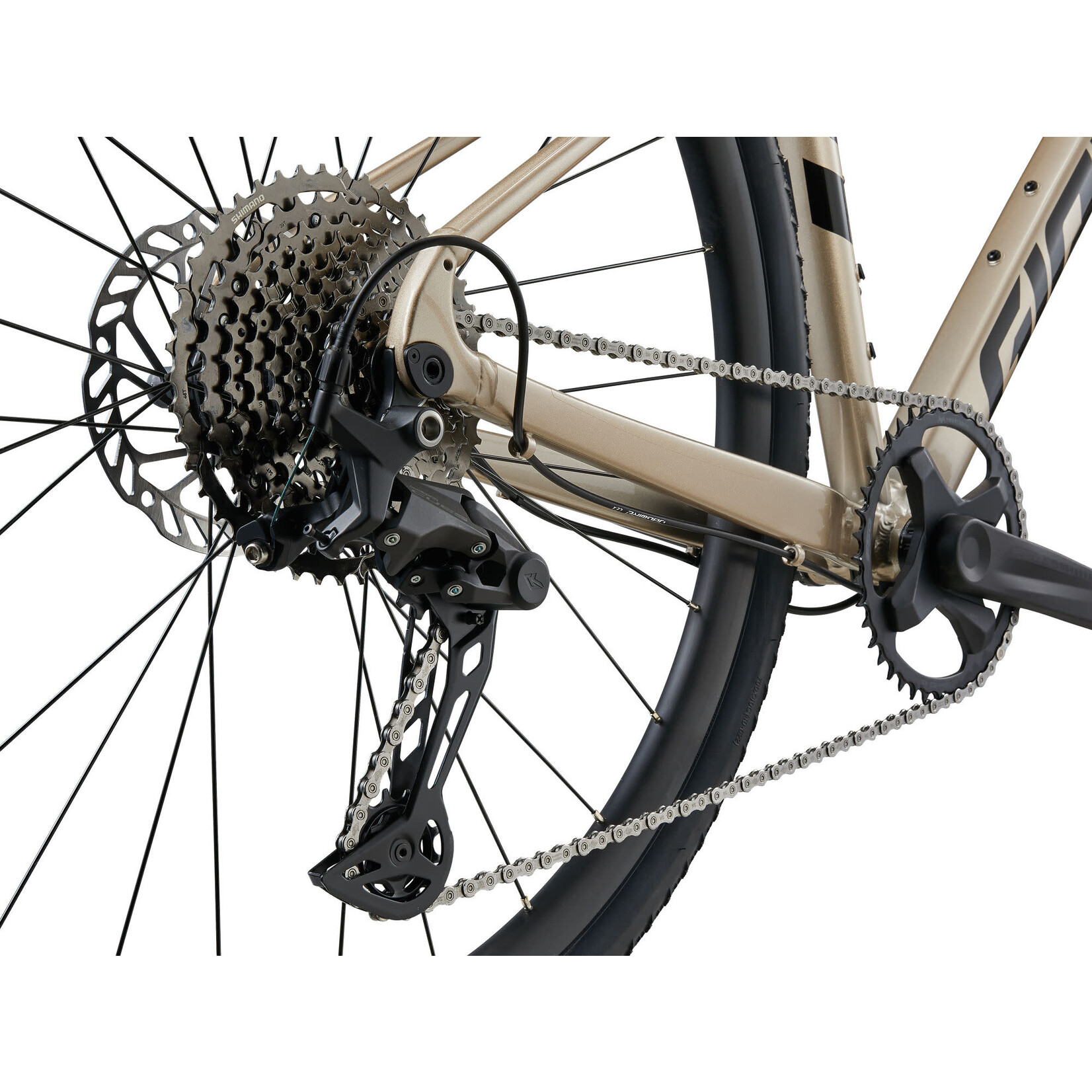

• Rear Derailleur - Shimano Cues U6020 11 speed
• Brakes - Tektro HD-R280, Giant MPH rotors [F]160mm, [R]160mm
• Brake Levers - Tektro HD-R280
• Cassette - Shimano CS-LG40011, 11x45
• Chain - KMC Xglinde w/ Missing Link

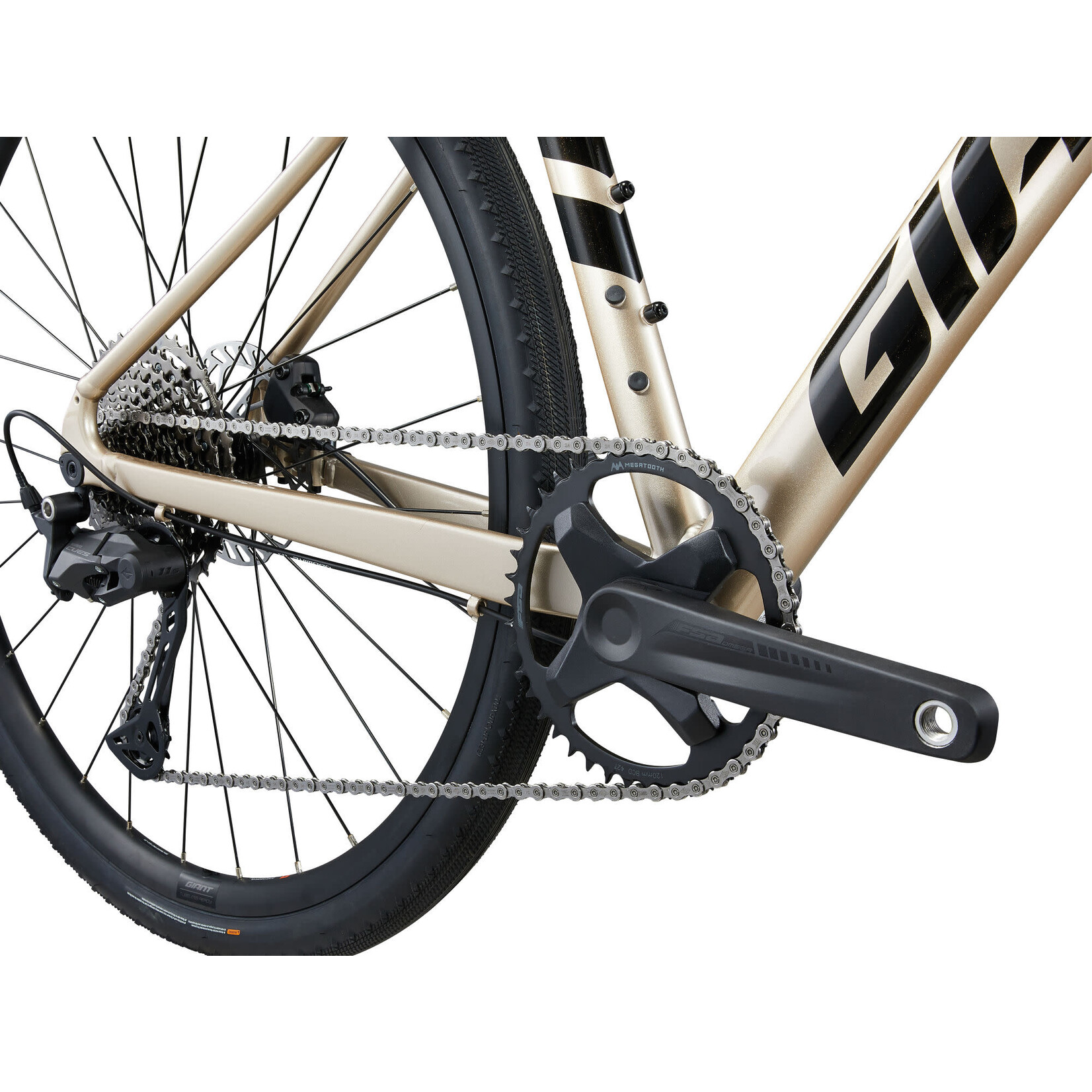

• Crankset - FSA Omega AGX+, 42 XS:170mm, S:170mm, M:170mm, M/L:172.5mm, L:172.5mm, XL: 172.5mm
• Bottom Bracket - threaded
• Rims - Giant SR-2 Wheel Set
• Hubs - Giant alloy, 12mm thru-axle
• Spokes - Sapim
• Tyres - Giant Gavia Fondo AR, tubeless, 700x40c
• Extras - tubeless prepared, 42mm max tire size



Sizing Guide and Geometry

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.
