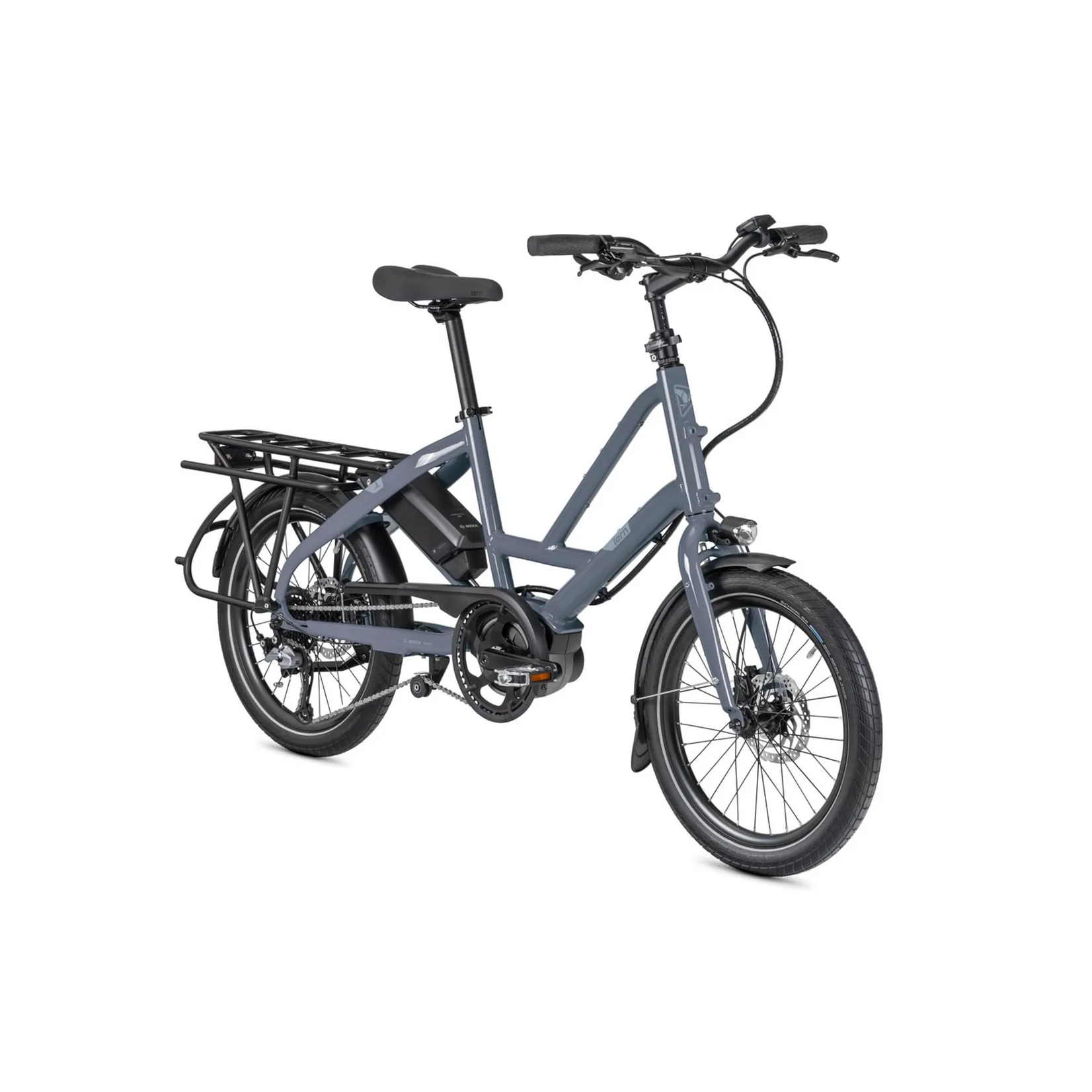

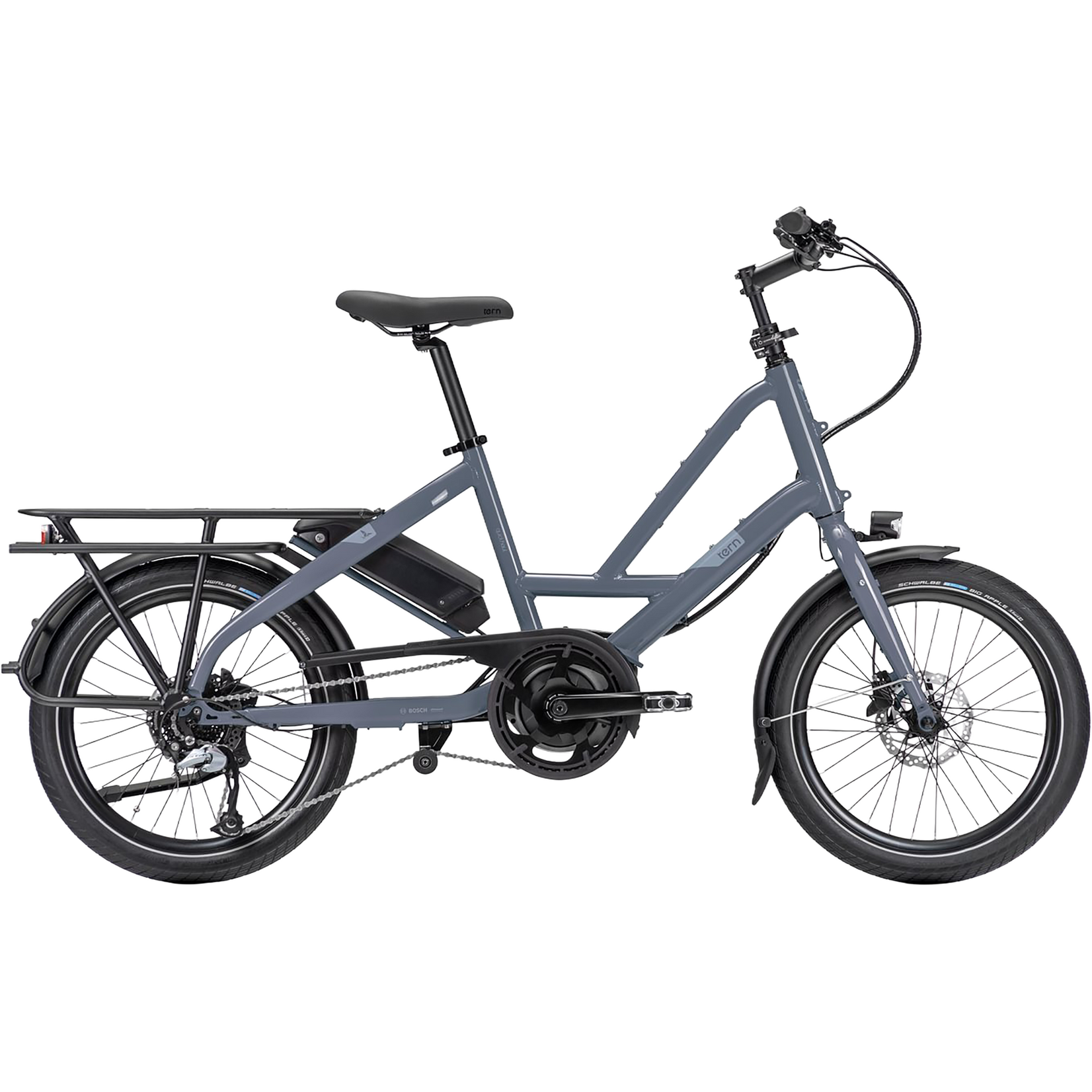

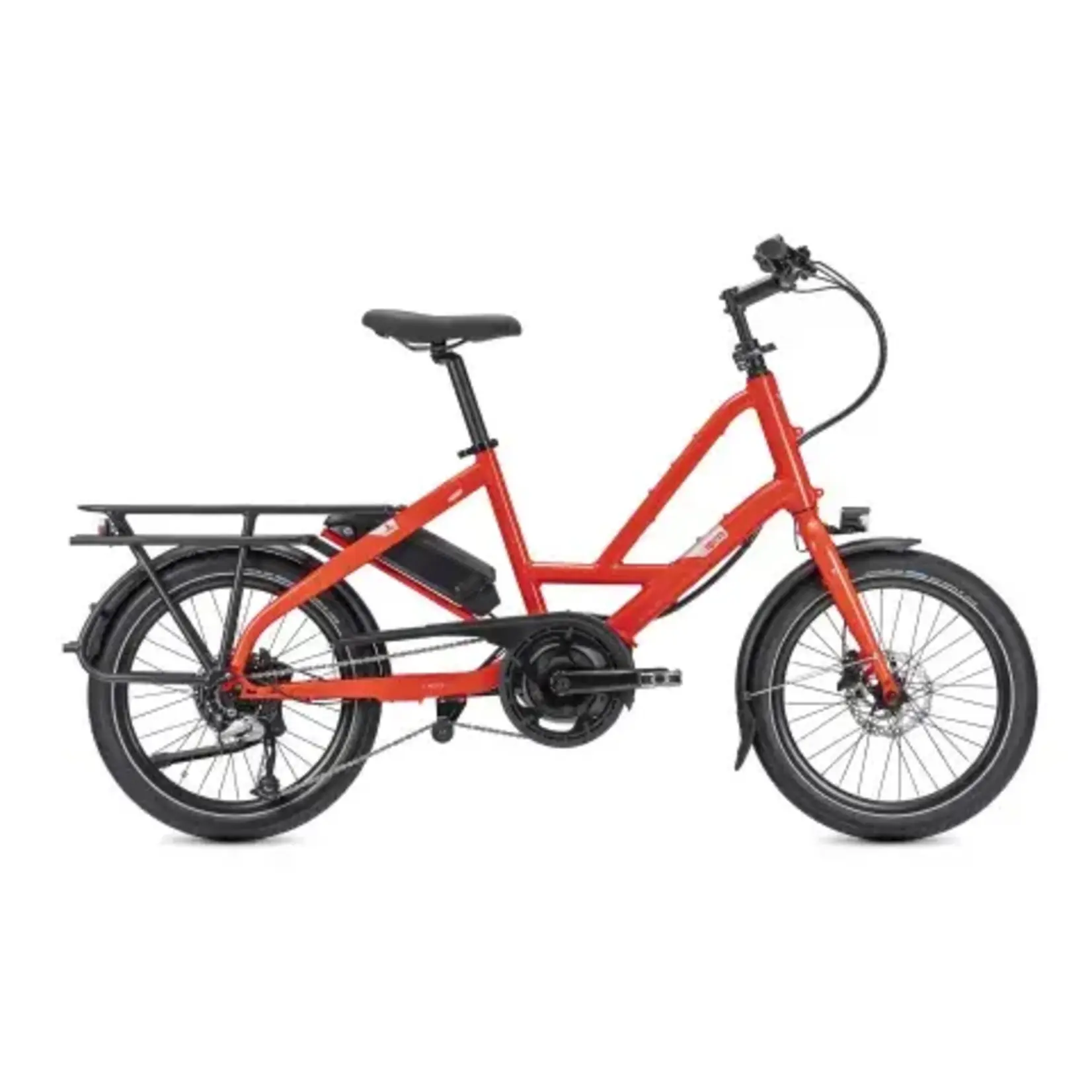

D8 Quick Haul

TERN D8 Quick Haul

€3.200,00

Incl. tax

The Quick Haul is a built-to-last compact e-bike that’s ready to tackle your daily grind. Think of it as the multitool of e-bikes: small and unassuming enough to be your daily go-to, yet capable of handling big jobs with finesse.

Highlights

Bosch Active Line Plus motor provides up to 50 Nm of torque and 270% support
1x8-speed Shimano Altus groupset with trigger shifter
Shimano hydraulic disc brakes
Cargo capacity: 50 kg on the rear rack, plus an additional 20 kg with optional front rack
Fits riders 160 - 195 cm (5’3” - 6’5”), and also riders 145 - 180 cm (4’9” - 5'11") when equipped with a shorter, 350 mm seatpost
Lots of available kid- and cargo-carrying accessories—easily create your perfect setup
Ultra-low 490 mm standover height makes (dis)mounting and waiting at stops easier
Shimano hydraulic disc brakes for reliable stopping power—even when heavily loaded and riding fast
Proven safe and reliable: frame and fork are EFBE-tested up to the 150 kg (331 lb) Maximum Gross Vehicle Weight

Battery Specification

Range: 54 - 105 km (33.6 - 65.2 mi)
Battery power: Bosch PowerPack 400, 400Wh

Technical Specification

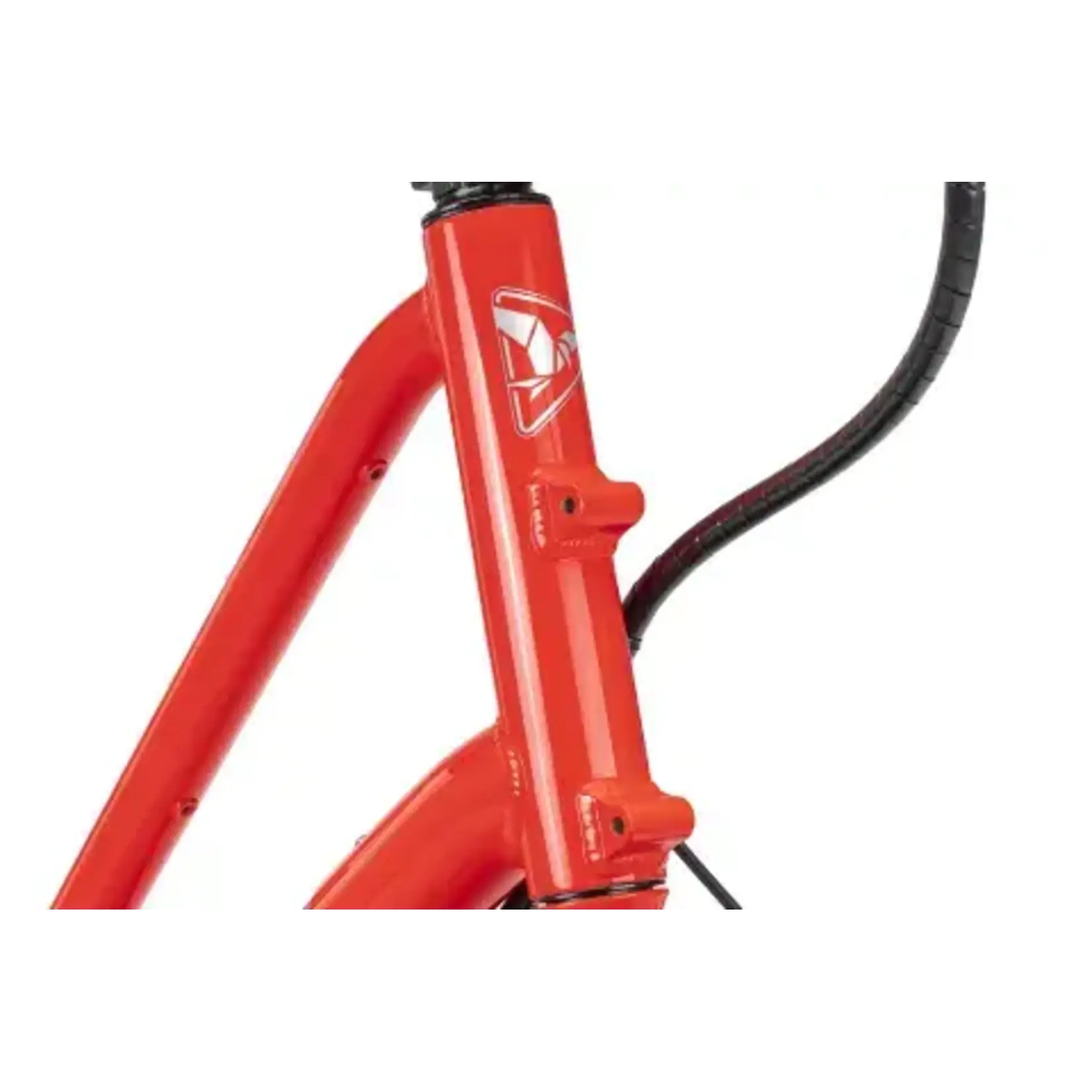

Frame	Tern Quick Haul, Patented Design, 6061-AL, EFBE Tri-Test approved
Fork	Tern Cargo, steel, EFBE approved
Headset	TH, cartridge bearings
Bottom Bracket	Motor integrated

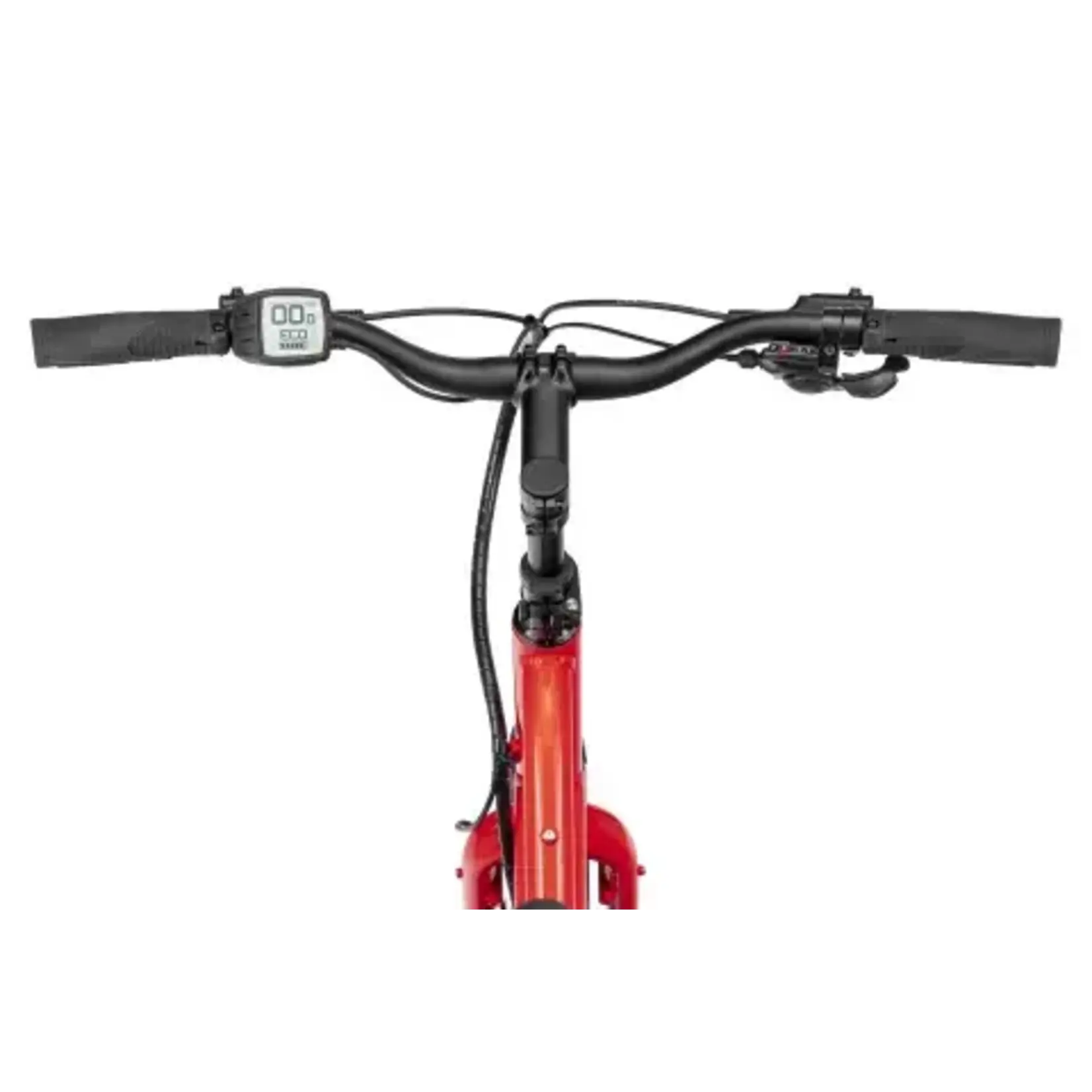

Handlebar	Tern Low riser, 31.8mm, 6061-AL
Stem	Speedlifter, 150mm extension, 3D Forged stem, 31.8mm
Grips	Velo ergonomic, lock-on
Front Brake	Shimano, hydraulic disc
Rear Brake	Shimano, hydraulic disc
Brake Levers	Shimano, hydraulic disc
Rear Derailleur	Shimano Altus Shadow
Shift Levers	Shimano Altus, 1 x 8-speed, trigger
Chain	KMC for eBike 8-speed
Cassette	Shimano 11-34T, 8-speed
Crankset	Tern custom, forged 6061-AL crankarm
Front Wheel	Kinetix Comp, for disc rims with Shimano disc hub, sealed bearings and stainless steel spokes
Rear Wheel	Kinetix Comp, for disc rims with Shimano disc hub, sealed bearings and stainless steel spokes
Front Tyre	Schwalbe Big Apple, 55-406, puncture protection, Reflex, clincher
Rear Tyre	Schwalbe Big Apple, 55-406, puncture protection, Reflex, clincher

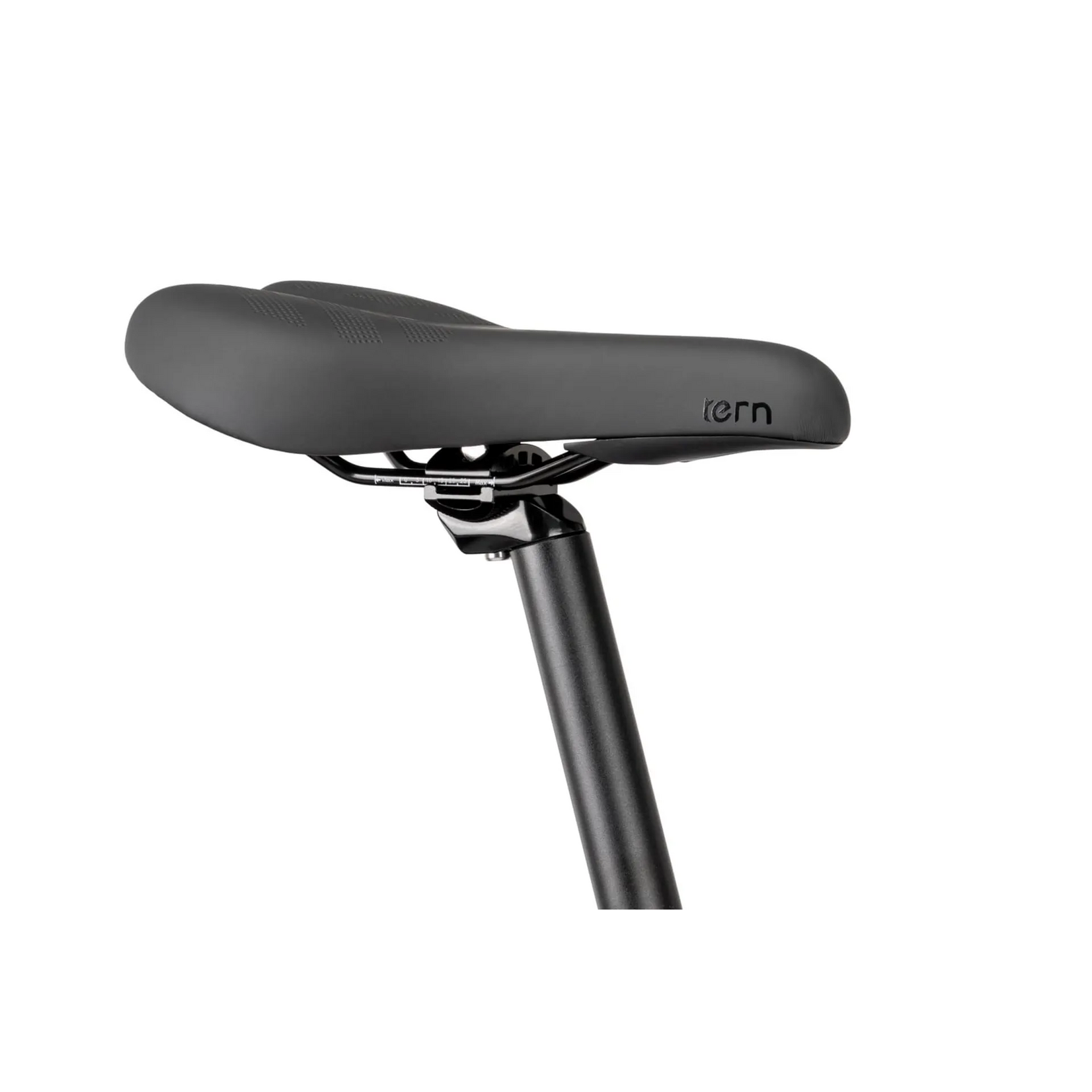

Saddle	Velo Comfort
Seatpost	Tern 31.6 mm, 6061-AL, micro-adjust clamp
Pedals	Urban with non-slip surface, sealed bearings
Motor	Bosch Active Line Plus, 270% Assist, 50Nm Torque
Battery	Bosch PowerPack 400Wh

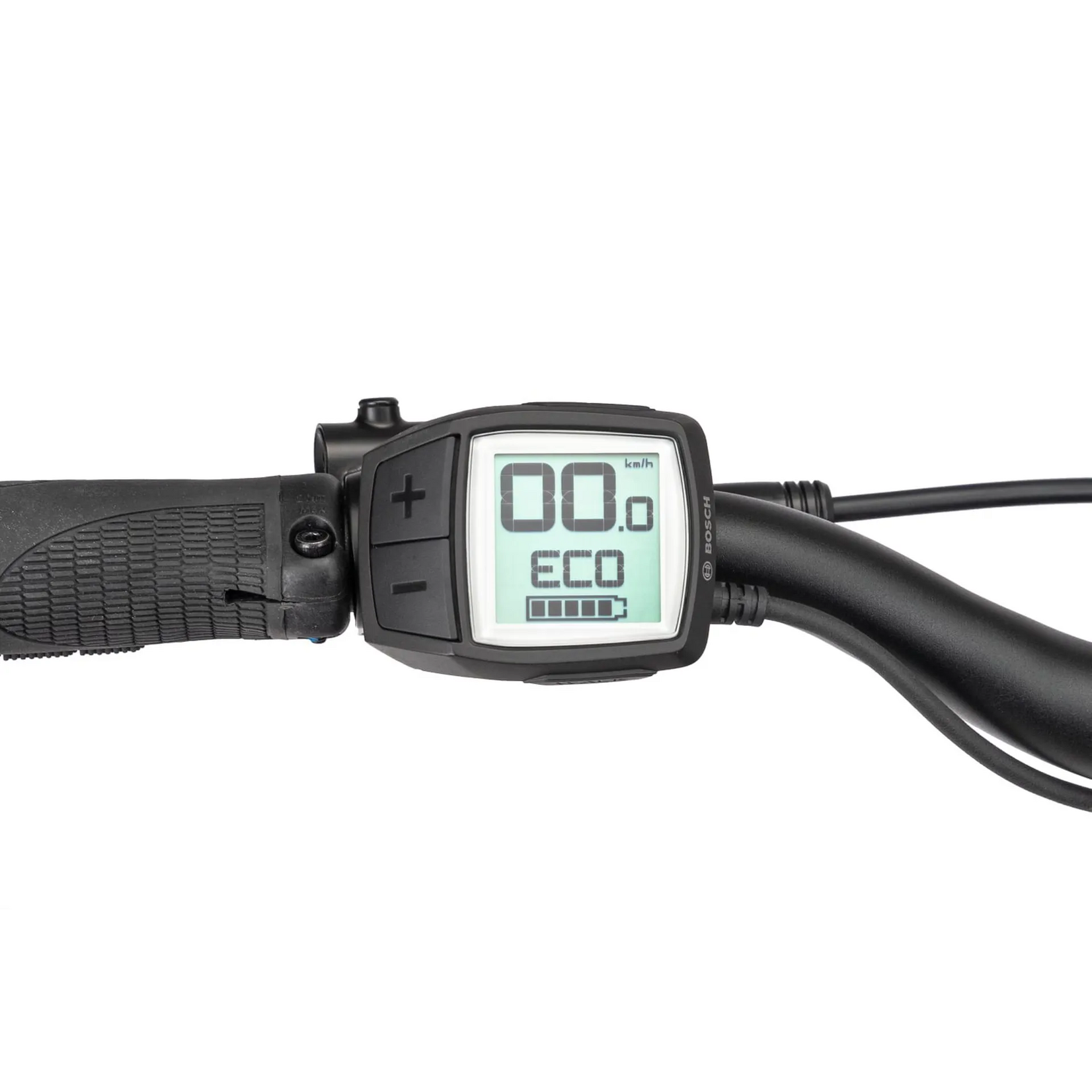

Display/UI	Bosch Purion, four mode selectable, walk assist
Charger	Bosch Standard Charger
Maximum recommended weight	Rider - 120kg (264.6lbs) / maximum gross vehicle weight - 150kg (330.7lbs)
Suggested Rider Height	160 - 195cm (63 - 76.8")
Distance (Seatpost to Handlebar)	60 - 64cm (23.6 - 25.2”)
Distance (Saddle to Pedal)	68 - 110cm (26.8 - 43.3”)
Manufacturer claimed weight	22.8kg (50.3lb)

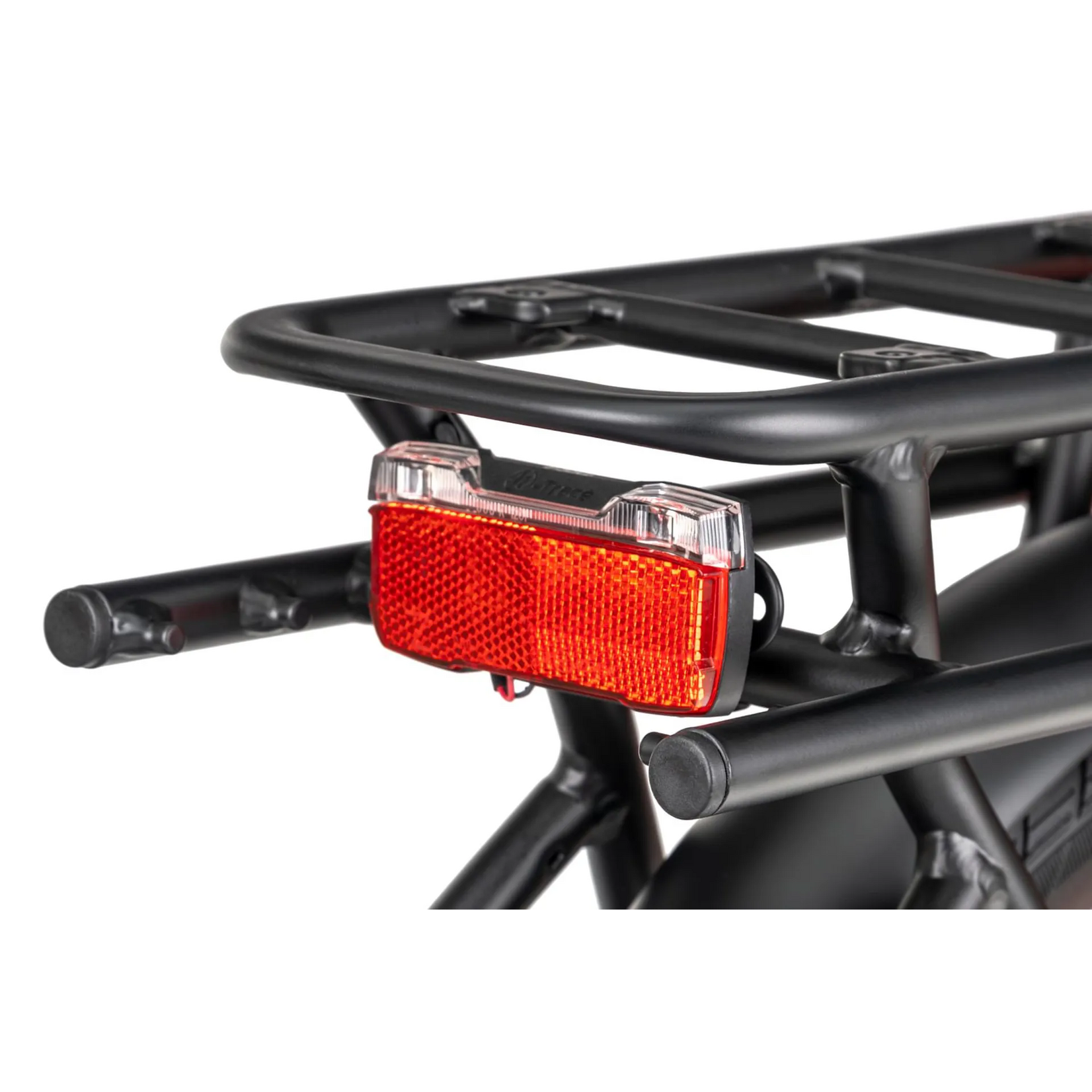

Accessories	Atlas Q Rack, UpperDeck Mount System, Vertical Parking, 50kg capacity, SKS Chainblade, Combo Mount luggage socket, Herrmans 120 lumens front light, Herrmans rear light, Chromeplastic mudguards, Pletscher design rear mount kickstand
Electric assisted speed limit	15.5 mph / 25 km/h
